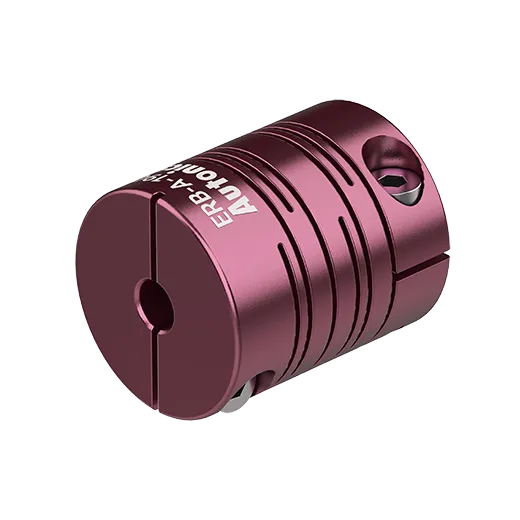

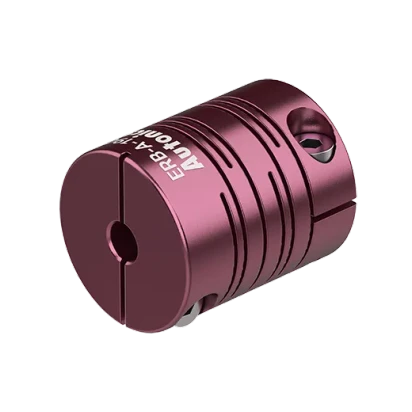

Autonics ERB Series ERB-A-26S-06/06

Autonics ERB Series ERB-A-26S-06/06

Part Number #

AUT1051051

Autonics ERB Series ERB-A-26S-06/06

List Price:

$53.00

/each

Product Description

Autonics Rotary Encoders, model ERB-A-26S-06/06, from the ERB Series product line.

Specifications

Connection method: Set screw
Material: Aluminum(AL 7075-T6), Alumite surface
Max. allowable revolution: 15000rpm
Max. torque: 3.0N.m(30.42kgf.cm)
Rated torque: 1.5N.m(15.21kgf.cm)
Mounting bolt: M4
Mounting torque: 1.7N.m
Min. allowable misalignment: Ø5mm
Max. allowable misalignment: Ø12mm
Inner diameter of both ends: Ø6mm/Ø6mm
Protection structure: -
Torsional stiffness: 240 N·m/rad
Weight: Approx. 37.3g(approx. 36.7g)
