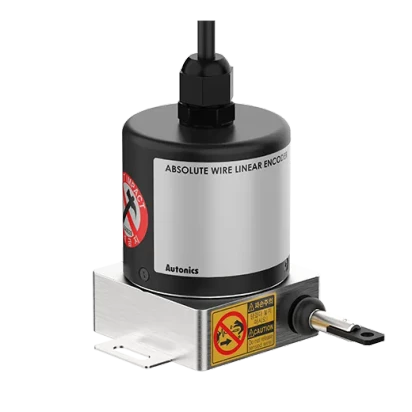

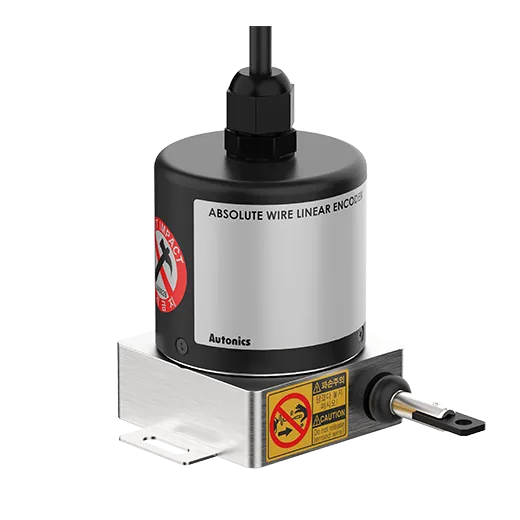

Autonics EWLS50 Series EWLS50-512-B-PN-24

List Price:

$582.00

/each

Product Description

Autonics Rotary Encoders, model EWLS50-512-B-PN-24, from the EWLS50 Series product line.

Shaft outer diameter: 50mm×50mm
Max. response frequency: 50kHz
Max. output pulse: 5,120division/512mm(resolution: 0.1mm)
Measurement range: 512mm
Output code: Binary Code
Control output: Parallel NPN open collector
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: -
Min. resolution: 0.1mm
Response speed: Max. 500mm/sec
Electrical specification_Input_Input signal: Reset
Electrical specification_Input_Input level: High: 5-24VDC @(=), Low: 0-1.2VDC @(=)
Electrical specification_Input_Input logic: Low active, OPEN or HIGH for common use
Electrical specification_Input_Input time: Min. 100ms
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Hexagon wrench screw(M4×8)
Weight: Approx. 450g
