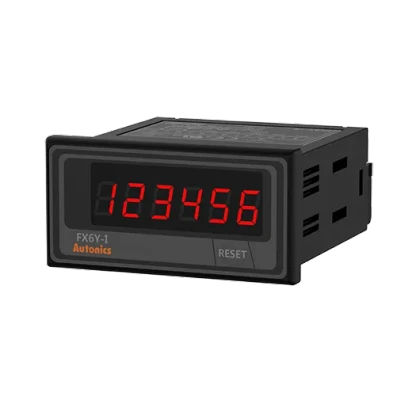

Autonics FXY Series FX6Y-I4

List Price:

$120.00

/each

Product Description

Autonics Counters, model FX6Y-I4, from the FXY Series product line.

Display method: 6-digit 7-segment LED
Operation method: Counter: Count up, Count down, Count up/down</br>Timer: Count up, Count down
Terminal: Terminal block
Output Operation: -
Power supply: 100-240VAC~ 50/60Hz
Time operation: POWER ON START
External Power Supply: Max. 12VDC @(=) ±10% 50mA
Signal Input Method: Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed: 1, 30, 2k, 5k [cps]
Min. signal Width: 20ms
Memory Protection: Approx. 10 years
Setting range: 0.1 sec to 99999.9 sec, 1 sec to 999999 sec, 0.01 sec to 99 min 59.99 sec, 0.1 sec to 999 min 59.9 sec, 0.1 min to 99999.9 min, 1 sec to 99 hour 59 min 59 sec, 1 min to 9999 hour 59 min, 0.1 hour to 99999.9 hour
Control output_Type: Indicator
Control output_Relay: -
Control output_NPN open collector: -
Protection structure: IP40(front panel)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 175g (approx. 120g)

Write a Review

Brand:

Autonics Counters, model FX6Y-I4, from the FXY Series product line.

Display method: 6-digit 7-segment LED
Operation method: Counter: Count up, Count down, Count up/down</br>Timer: Count up, Count down
Terminal: Terminal block
Output Operation: -
Power supply: 100-240VAC~ 50/60Hz
Time operation: POWER ON START
External Power Supply: Max. 12VDC @(=) ±10% 50mA
Signal Input Method: Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed: 1, 30, 2k, 5k [cps]
Min. signal Width: 20ms
Memory Protection: Approx. 10 years
Setting range: 0.1 sec to 99999.9 sec, 1 sec to 999999 sec, 0.01 sec to 99 min 59.99 sec, 0.1 sec to 999 min 59.9 sec, 0.1 min to 99999.9 min, 1 sec to 99 hour 59 min 59 sec, 1 min to 9999 hour 59 min, 0.1 hour to 99999.9 hour
Control output_Type: Indicator
Control output_Relay: -
Control output_NPN open collector: -
Protection structure: IP40(front panel)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 175g (approx. 120g)
