Autonics GP-A104 Series GP-A104-T9D9

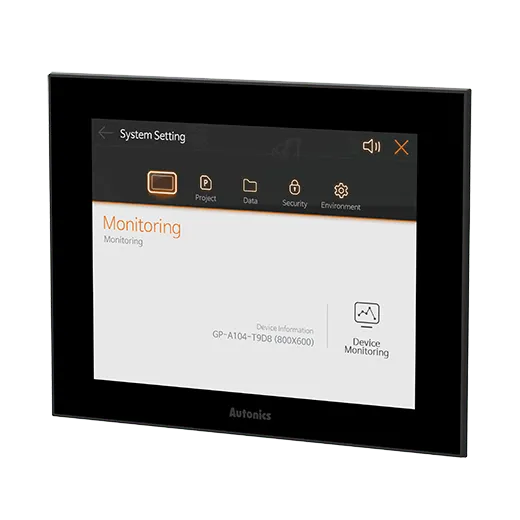

Autonics GP-A104 Series GP-A104-T9D9

Part Number #

AUT1054255

Autonics GP-A104 Series GP-A104-T9D9

List Price:

$834.00

/each

Product Description

Autonics Hmi, model GP-A104-T9D9, from the GP-A104 Series product line.

Specifications

Display Specifications_LCD Type: TFT Color LCD
Display Specifications_Resolution: 800×600 dot
Display Specifications_Display Area: 211.2×158.4mm
Display Specifications_Color: 16,777,216 colors
Graphic Drawing Memory: 64MB
Touch method: Pressure sensitive type
Interface_RS232C: 2 EA
Interface_RS422: -
Interface_Ethernet: IEEE802.3(U), 10/100Base-TX
Power supply: 24VDC @(=)
Protection structure: IP65 (Front panel, IEC standards)
Dedicated Software: atDesigner
Interface_USB(Host): 1 EA
Interface_USB(Device): 1 EA
Interface_CAN: 24V CAN transceiver
External storage: Micro SD up to 32GB (FAT16/32)
Graphic drawing Perfomance_Language: English, Korean
Graphic drawing Perfomance_Text: Bitmap ASCII and vector font
Graphic drawing Perfomance_Number of user screen: 100 pages
Real-time controller: RTC embedded
Accessories: Fixing bracket: 6, CAN connector, battery (included)
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 1.62kg (approx. 1.07kg)
