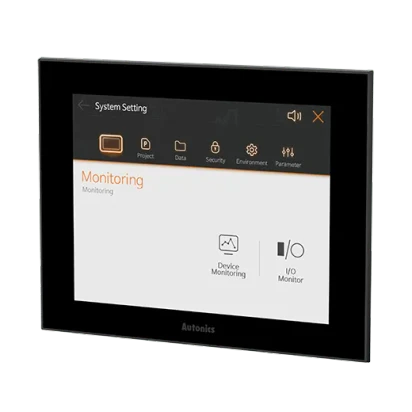

Autonics LP-A104 Series LP-A104-T9D9-C6R
Part Number #
AUT1054258

Autonics LP-A104 Series LP-A104-T9D9-C6R

List Price:
$931.00
/each
Product Description

Autonics Hmi, model LP-A104-T9D9-C6R, from the LP-A104 Series product line.

Specifications

  • Display Specifications_LCD Type: TFT Color LCD
  • Display Specifications_Resolution: 800×600 dot
  • Display Specifications_Display Area: 211.2×158.4mm
  • Display Specifications_Color: 16,777,216 colors
  • Graphic Drawing Memory: 64MB
  • Touch method: Pressure sensitive type
  • Interface_RS232C: 2 EA
  • Interface_RS422: -
  • Interface_Ethernet: IEEE802.3(U), 10/100Base-TX
  • Power supply: 24VDC @(=)
  • Protection structure: IP65 (Front panel, IEC standards)
  • Dedicated Software: atDesigner, atLogic
  • Interface_USB(Host): 1 EA
  • Interface_USB(Device): 1 EA
  • Interface_CAN: 24V CAN transceiver
  • External storage: Micro SD up to 32GB (FAT16/32)
  • Graphic drawing Perfomance_Language: English, Korean
  • Graphic drawing Perfomance_Text: Bitmap ASCII and vector font
  • Graphic drawing Perfomance_Number of user screen: 100 pages
  • Real-time controller: RTC embedded
  • Accessories: Fixing bracket: 6, CAN connector, battery (included)
  • Environment_Ambient temperature: 0 to 50℃, storage: -20 to 60℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Weight: Approx. 1.66kg (approx. 1.10kg)

Downloadable Materials

Write a Review
  • CAD Model
  • Specifications
