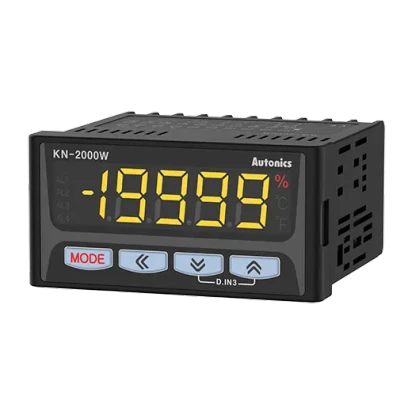

Autonics KN-2000W Series KN-2201W

List Price:

$299.00

/each

Product Description

Autonics Temperature Controllers, model KN-2201W, from the KN-2000W Series product line.

Power supply_AC power: -
Power supply_DC power: 24VDC @(=)
Input type_RTD: JPt100Ω, DPt100Ω, DPt50Ω, Cu50Ω, Cu100Ω (5 types)
Input type_TC: K, J, E, T, R, B, S, N, C (W5), L, U, PLII (12 types)
Input type_Analog: · Voltage: ±1.0000V, ±50.00mV, ±200.0mV, 1.000-10.000V (4 types)· Current: 4.00-20.00mA, 0.00-20.00mA (2 types)
Auxiliary output_Alarm output: · 2-point: relay contact capacity 250VAC~ 50/60Hz~ 3A 1c
Auxiliary output_Transmission output: -
Auxiliary output_Communication output: -
Display accuracy: ±0.2% F.S. ±1-digit (25℃±5℃)±0.3% F.S. ±1-digit ( 10℃ to 20℃, 30℃ to 50℃)In case of thermocouple and below -100˚C input, [ ±0.4%F.S. ] ±1-digit※TC-T, TC-U is min. ±2.0℃
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 332g (approx. 200g)

Write a Review

Brand:

Autonics Temperature Controllers, model KN-2201W, from the KN-2000W Series product line.

Power supply_AC power: -
Power supply_DC power: 24VDC @(=)
Input type_RTD: JPt100Ω, DPt100Ω, DPt50Ω, Cu50Ω, Cu100Ω (5 types)
Input type_TC: K, J, E, T, R, B, S, N, C (W5), L, U, PLII (12 types)
Input type_Analog: · Voltage: ±1.0000V, ±50.00mV, ±200.0mV, 1.000-10.000V (4 types)· Current: 4.00-20.00mA, 0.00-20.00mA (2 types)
Auxiliary output_Alarm output: · 2-point: relay contact capacity 250VAC~ 50/60Hz~ 3A 1c
Auxiliary output_Transmission output: -
Auxiliary output_Communication output: -
Display accuracy: ±0.2% F.S. ±1-digit (25℃±5℃)±0.3% F.S. ±1-digit ( 10℃ to 20℃, 30℃ to 50℃)In case of thermocouple and below -100˚C input, [ ±0.4%F.S. ] ±1-digit※TC-T, TC-U is min. ±2.0℃
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 332g (approx. 200g)
