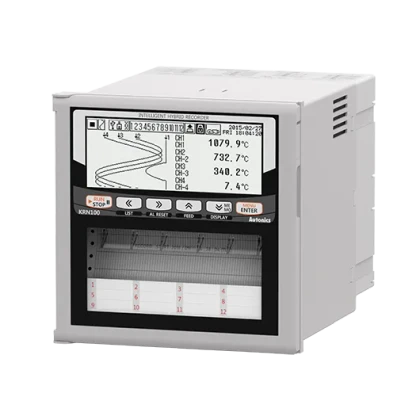

Autonics KRN100 Series KRN100-12000-00-0S

List Price:

$3,154.00

/each

Product Description

Autonics Recorders, model KRN100-12000-00-0S, from the KRN100 Series product line.

Power supply: 100-240VAC~ 50/60Hz
Number of input channels: 12-channel
Universal input: Temperature sensor (RTD, thermocouple), analog (voltage, current)
Sampling cycle: 1 to 4-channel: 25ms/125ms/250ms, 5 to 12-channel: 125ms/250ms</br>(inner sampling period is operation unit time for average movement filter and alarm output function.)</br>※Min. sampling period for TC-R, U, S, T sensor is 50ms.
Storage cycle: 1 to 3600 sec (storage interval time to inner log file is 1 sec)
Innner memory: 512MB
USB memory: User purchased, recognizes Max. 32GB, enables to use cable up to 1.5m
Protection structure: IP40 (for front panel)
Digital inputs: None
Alarm transistor outputs: None
Alarm relay outputs: None
Transmitter power outputs: None
Communication output: None
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 2.4 to 2.7kg (approx. 1.7 to 2.0kg)

Write a Review

Brand:

Autonics Recorders, model KRN100-12000-00-0S, from the KRN100 Series product line.

Power supply: 100-240VAC~ 50/60Hz
Number of input channels: 12-channel
Universal input: Temperature sensor (RTD, thermocouple), analog (voltage, current)
Sampling cycle: 1 to 4-channel: 25ms/125ms/250ms, 5 to 12-channel: 125ms/250ms</br>(inner sampling period is operation unit time for average movement filter and alarm output function.)</br>※Min. sampling period for TC-R, U, S, T sensor is 50ms.
Storage cycle: 1 to 3600 sec (storage interval time to inner log file is 1 sec)
Innner memory: 512MB
USB memory: User purchased, recognizes Max. 32GB, enables to use cable up to 1.5m
Protection structure: IP40 (for front panel)
Digital inputs: None
Alarm transistor outputs: None
Alarm relay outputs: None
Transmitter power outputs: None
Communication output: None
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 2.4 to 2.7kg (approx. 1.7 to 2.0kg)
