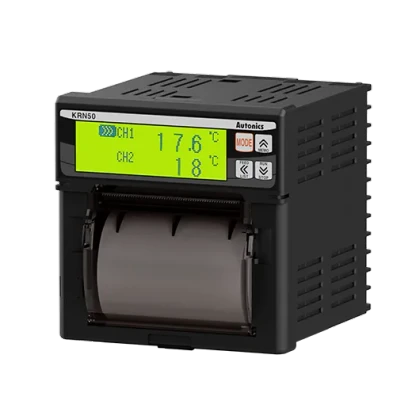

Autonics KRN50 Series KRN50-1002-41

List Price:

$846.00

/each

Product Description

Autonics Recorders, model KRN50-1002-41, from the KRN50 Series product line.

Power supply_AC power: -
Power supply_DC power: 24VDC @(=)
Input type_RTD: JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω (5 types)
Input type_TC: K, J, E, T, B, R, S, N, C, G, L, U, PLII (13 types)
Input type_Analog: · Voltage: -50.0-50.0mV, -199.0-200.0mV, -1.000-1.000V, -1.00-10.00V (4 types)</br>· Current: 0.00-20.00mA, 4.00-20.00mA (2 types)</br>※ For current input, connect external 50Ω B class (0.1%) high-accuracy resistor
Alarm output: -
Communication output: RS485 Communication output (ModBus RTU protocol)
Sampling cycle: 500ms/channel×2 channels = 1000ms
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Number of input channels: 1-channel
Weight: Approx. 700g (approx. 470g)
