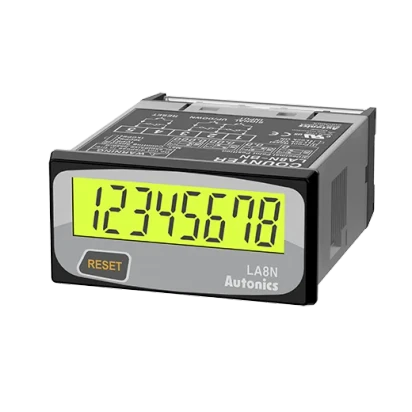

Autonics LA8N Series LA8N-BV-L

Autonics LA8N Series LA8N-BV-L

Part Number #

AUT1053238

Autonics LA8N Series LA8N-BV-L

List Price:

$74.00

/each

Product Description

Autonics Counters, model LA8N-BV-L, from the LA8N Series product line.

Specifications

Display method: 8-digit 7-segment LCD
Operation method: Count up
Terminal: Terminal block
Power supply: Built-in battery(over 7 years)
External Power Supply: -
Input Method_Signal: Voltage input(PNP)
Input Method_Reset: Voltage input(PNP)
Max. Counting Speed: 1, 30, 1k [cps]
Min. signal Width: 20ms
Control output: Indicator
Backlight: Backlight function
Protection structure: IP66(front panel)
Accessories: Mounting bracket, Rubber waterproof ring
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 96g (approx. 50g)

Downloadable Materials
