Autonics LE8N Series LE8N-BN

List Price:

$63.00

/each

Product Description

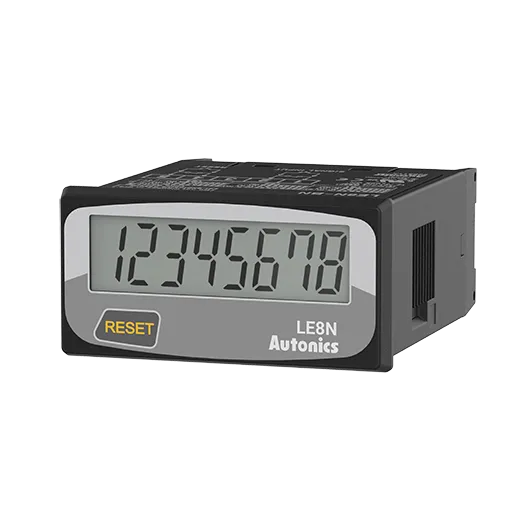

Autonics Timers, model LE8N-BN, from the LE8N Series product line.

Display method: 8-digit 7-segment LCD
Operation method: Count up
Output Operation: -
Time operation: POWER ON START
Terminal: Terminal block
Power supply: Built-in battery(over 10 years)
External Power Supply: -
Memory Protection: -
Setting range: 1 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour
Input Method_Signal: No-voltage input(NPN)
Input Method_Reset: No-voltage input(NPN)
Control output: Indicator
Backlight: -
Protection structure: IP66(front panel)
Min. signal Width: SIGNAL, RESET input: Approx. 20ms
External set switch: SW1, SW2, SW3
Accessories: Mounting bracket, Rubber waterproof ring
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 96g (approx. 50g)
