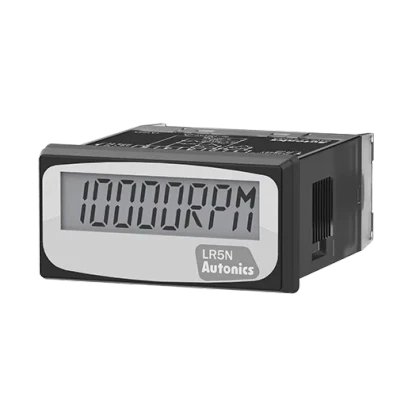

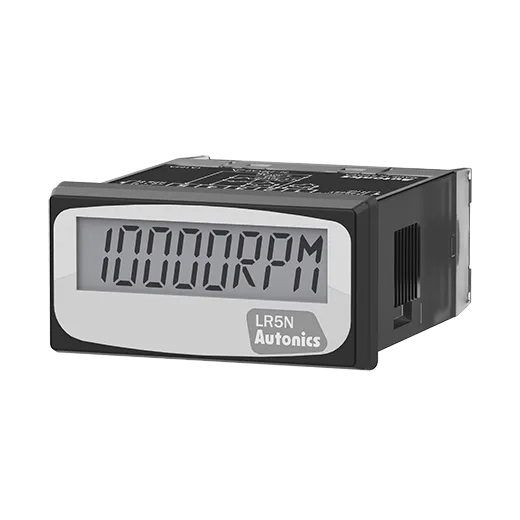

Autonics LR5N-B Series LR5N-B

List Price:

$70.00

/each

Product Description

Autonics Digital Panel Meters, model LR5N-B, from the LR5N-B Series product line.

Display method: 4½-digit 7-segment LCD
Character height: 8.7mm
Max. display Range: 0 to 10000
Measurement: Frequency, Revolutions
Measurement range: 1 to 10000RPM, 0.1 to 1000.0RPM, 1 to 1000RPS, 1 to 1000Hz, 0.1 to 100.0Hz
Input method: Voltage input(PNP), No-voltage input(NPN)
Power supply: Built-in battery(over 3 years)
External Power Supply: -
Output_Main Output(Comparative Value): Indicator
Output_Sub Output(Display Value): -
Protection structure: IP66 (when using waterproof rubber for front panel), terminal cover (finger protector)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 91.5g (approx. 59g)
