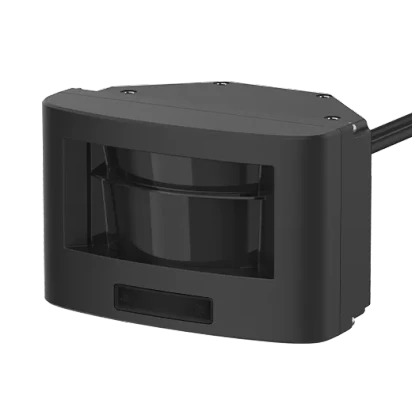

Autonics Lidars, model LSE3-4A5R2-ET, from the LSE3 Series product line.
Specifications
- Laser for detection emitting property: Infrared laser: 1
- Emitting property_Laser class: CLASS 1
- Emitting property_Wavelength band: 905nm
- Emitting property_Max. pulse output power: 80W
- Laser for installation emitting property: Visible light laser: 3
- Emitting property_Laser class: CLASS 3R
- Emitting property_Wavelength band: 650 nm
- Emitting property_Max. pulse output power: 4 mW
- Min. size of the scanning target: Detection distance of 3m : 2.1×2.1×2.1 cm, Detection distance of 5m : 3.5×3.5×3.5 cm
- Scanning frequency: 15 Hz
- Response time: ≤ 20 to 80ms + monitoring time
- Monitoring zone: 0.3×0.3 ~ 5.6×5.6 m
- Angular resolution: 0.4°
- Aperture angle: 90°
- Object reflectivity: Min. 2%
- Korean Railway Standards: KRS SG 0068
- Weight: ≈ 0.9 kg (≈ 1.1 kg)
- Power supply: 10 ~ 35 VDC @(=)
- Power consumption: ＜ 10 W
- Input: Photocoupler input: 1</br> H: ≥ 8 - 30 VDC@(=), L: ≤ 3 VDC@(=)
- Output: PhotoMOS relay output: 2</br>Resistive load: 35 VDC@(=)/ 24 VAC~, ≤ 80 mA
- Vibration: Max. 2G (18.7m/s²)
- Shock: 30G/18ms
- Environment_Ambient illumination: ≤ 100,000 lx
- Environment_Ambient temperature: -30 to 60 ℃, storage: -30 ~ 70 ℃ (no freezing or condensation)
- Environment_Ambient humidity: 0 to 95 %RH, storage: 0 to 95 %RH (no freezing or condensation)
- Protection structure: IP67(IEC standard)
- Cable_Power, I/O: Ø 5 mm, 8-wire, 5 m
- Cable_Ethernet: 5 mm, 4-wire, 3 m, shield cable, RJ45 connector
- Core: AWG26 (0.16 mm, 7-core), insulator outer diameter: Ø 1 mm
- Material: Case: AL, Window: PC
- Communication interface: Ethernet
- Sold separately: Main bracket: BK-LSE3, Sub bracket: BK-LSE2-SUB
- Component_PC program: atLidar (laser scanner program)
