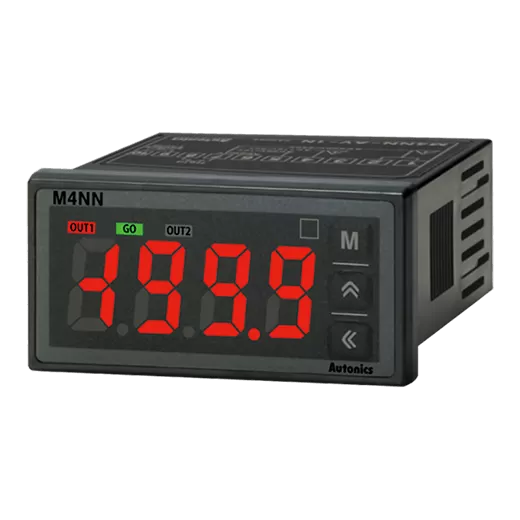

Autonics M4NN Series M4NN-AV-12

List Price:

$155.00

/each

Product Description

Autonics Digital Panel Meters, model M4NN-AV-12, from the M4NN Series product line.

Display method: 4-digit 7-segment LED
Character height: 11mm
Max. display Range: -1999 to 9999
Measurement: AC voltage, Frequency
Input specification: 0-600V, 0-250V, 0-110V, 0-50V, 0-20V, 0-10V, 0-2V, 0-1V
AC Measurement: Average value(AVG)
Power Factor Display: -
Power supply: 5-24VDC @(=)
Output_Main Output(Comparative Value): PNP open collector (OUT1, GO, OUT2)
Output_Sub Output(Display Value): -
Max. allowable input: Approx. 110% of the rated measurement input range
Display accuracy: •23℃±5℃ - ±0.3% F.S. ±3-digit</br>•-10 to 50℃ - ±0.5% F.S. ±3-digit / Frequency: ±0.5% F.S. ±3-digit
Display cycle: 0.1 to 5.0 sec (selectable by 0.1 sec)
A/D conversion method: Practical oversampling using successive approximation ADC
Sampling cycle: 16.6ms (resolution 1/12,000)
Frequency measurement: Measurement range: 0.100 to 9999Hz(variable by decimal point position)
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP53 (front part, IEC standard)
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
Weight: Approx. 83.8g(approx. 46.9g)
