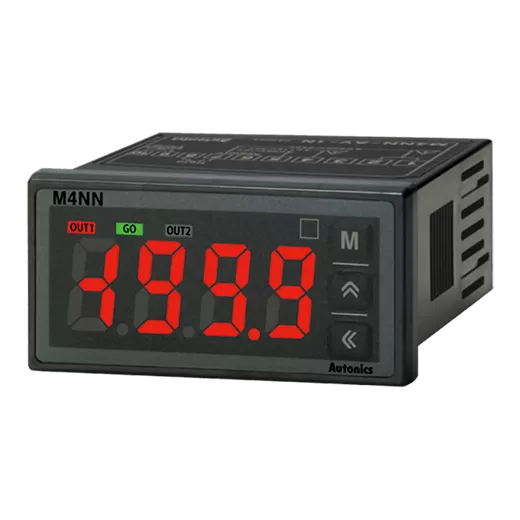

Autonics M4NN Series M4NN-DA-12

List Price:

$149.00

/each

Product Description

Autonics Digital Panel Meters, model M4NN-DA-12, from the M4NN Series product line.

Display method: 4-digit 7-segment LED
Character height: 11mm
Max. display Range: -1999 to 9999
Measurement: DC current
Input specification: -5-5A, -2-2A, -1-1A, -200-200mA, -100-100mA, -20-20mA, 4-20mA, -10-10mA, -2-2mA
AC Measurement: -
Power Factor Display: Power Factor Display
Power supply: 5-24VDC @(=)
Output_Main Output(Comparative Value): PNP open collector (OUT1, GO, OUT2)
Output_Sub Output(Display Value): -
Max. allowable input: -110 to 110% of the rated measurement input range(when not using minus input: -10 to 110%)
Display accuracy: •23℃±5℃ - ±0.1% F.S. ±2-digit※For 5A terminal of M4NN-DA, AA Input, ±0.3% F.S. ±3-digit•-10 to 50℃ - ±0.5% F.S. ±3-digit※For 5A terminal of M4NN-DA, AA Input, ±1% F.S. ±3-digit
Display cycle: 0.1 to 5.0 sec (selectable by 0.1 sec)
A/D conversion method: Practical oversampling using successive approximation ADC
Sampling cycle: 50ms (resolution 1/12,000)
Frequency measurement: -
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP53 (front part, IEC standard)
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
Weight: Approx. 83.7g(approx. 46.7g)
