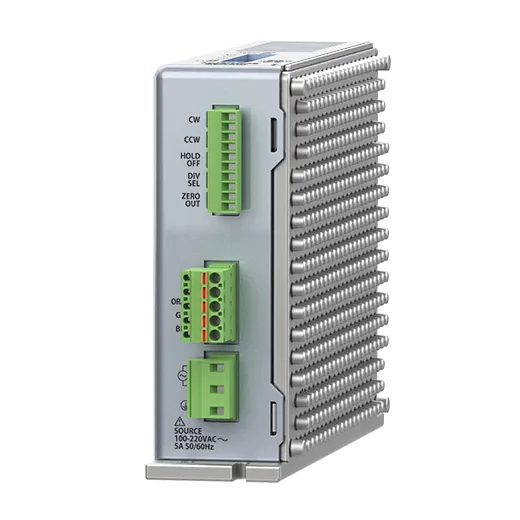

Autonics MD5 Series MD5-HF28

List Price:

$865.00

/each

Product Description

Autonics 5-phase Stepper Motors/drivers, model MD5-HF28, from the MD5 Series product line.

Operation method: Bipolar constant current pentagon drive
Applied Motor: 5-phase stepper motor
Resolution: FULL STEP(1-division), HALF STEP(2-division), Micro STEP(4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250-division)
Power supply: 100-220VAC~ 50/60Hz
Max. Run Current: 2.8A/Phase
Max. Current Consumption: 5A
Output: Zero point excitation
Number Of Axes: 1-axis
Protection structure: -
Input pulse characteristic_pulse width: Min. 1㎲(CW, CCW), Min. 1ms(HOLD OFF)
Input pulse characteristic_Duty Rate: 50%(CW, CCW)
Input pulse characteristic_Rising/Falling time: Below 130ns(CW, CCW)
Input pulse characteristic_Pulse input voltage: [H]: 4-8VDC @(=), [L]: 0-0.5VDC @(=)
Input pulse characteristic_pulse input current: 7.5-14mA(CW, CCW), 10-16mA(HOLD OFF, DIVISION SELECTION, ZERO OUT)
Input pulse characteristic_Max. input pulse freq: Max. 500kHz(CW, CCW)
Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 1.35kg(approx. 1.2kg)
