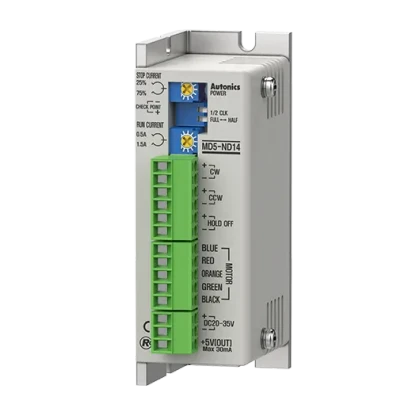

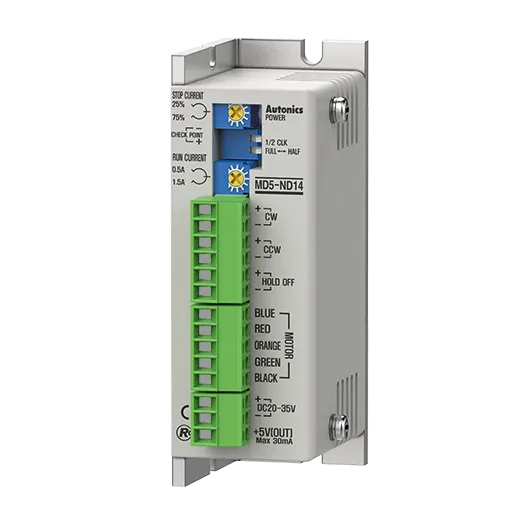

Autonics MD5 Series MD5-ND14

List Price:

$381.00

/each

Product Description

Autonics 5-phase Stepper Motors/drivers, model MD5-ND14, from the MD5 Series product line.

Operation method: Bipolar constant current pentagon drive
Applied Motor: 5-phase stepper motor
Resolution: FULL STEP(1-division), HALF STEP(2-division)
Power supply: 20-35VDC @(=)
Max. Run Current: 1.5A/Phase
Max. Current Consumption: 3A
Output: -
Number Of Axes: 1-axis
Protection structure: -
Input pulse characteristic_pulse width: Min. 10㎲(CW, CCW), Min. 1ms(HOLD OFF)
Input pulse characteristic_Duty Rate: 50%(CW, CCW)
Input pulse characteristic_Rising/Falling time: Below 130ns(CW, CCW)
Input pulse characteristic_Pulse input voltage: [H]: 4-8VDC @(=), [L]: 0-0.5VDC @(=)
Input pulse characteristic_pulse input current: 7.5-14mA(CW, CCW), 10-16mA(HOLD OFF)
Input pulse characteristic_Max. input pulse freq: Max. 50kHz(CW, CCW)
Environment_Ambient temperature: 0 to 40℃, storage: -10 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 183g (approx. 130g)
