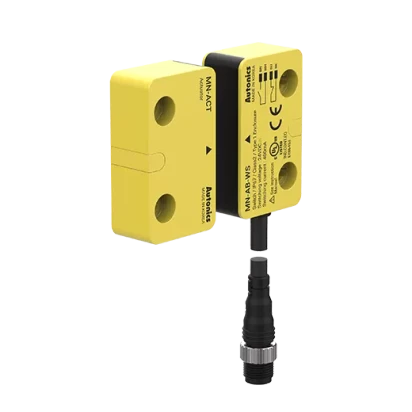

Autonics MN Series MN-AB-W

List Price:

$87.00

/each

Product Description

Autonics Non-contact Switches, model MN-AB-W, from the MN Series product line.

Contact type: 1 × N.O. + 1 × N.C.
Operation distance_OFF→ON: ≥ 5 mm
Operation distance_ON→OFF: ≤ 15 mm
Weight: Approx. 47.2g(approx. 61.0g)
Switching voltage: ≤ 24VDC@(=)
Switching current: ≤ 400mA
Life expectancy: ≥ 1 billion times (with low load)
Vibration: 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours
Vibration_Malfunction: 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 10 min
Shock: 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Shock_Malfunction: 300m/s² (approx. 30G) in each X, Y, Z direction in output ON/OFF status for 3 times
Ambient temperature: -10 to 55℃, storage: -20 to 60℃
Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP67(IEC standard)
Connection: Cable connector type
Connector type: M12 Connector
Material: Body/CAP: PC
