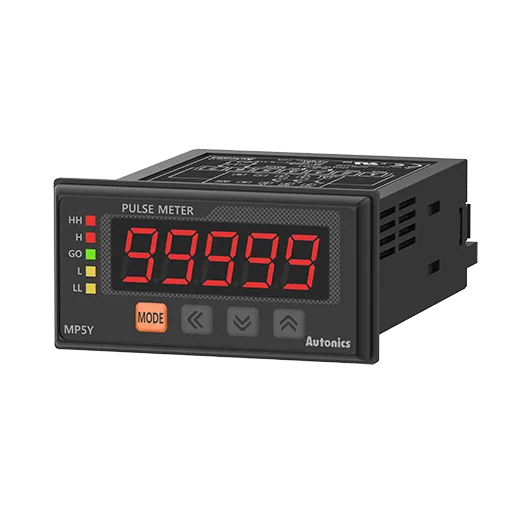

Autonics Digital Panel Meters, model MP5Y-41, from the MP5S/MP5Y/MP5W Series product line.
Specifications
- Display method: 5-digit 7-segment LED
- Character height: 14mm
- Max. display Range: -19999 to 99999
- Measurement: 16 operation modes: Frequency, Revolutions, Speed, Cycle, Time, Ratio, Density, Error, Length measurement, Interval, Accumulation, Addition/Subtraction, etc.
- Measurement range: 0.0005Hz to 50kHz, 0.01 to max. of each time range, 0 to 99999, -19999 to 99999
- Input method: Voltage input(PNP), No-voltage input(NPN)
- Power supply: 100-240VAC~ 50/60Hz
- External Power Supply: Max. 12VDC @(=) ±10% 80mA
- Output_Main Output(Comparative Value): NPN open collector (HH, H, GO, L, LL)
- Output_Sub Output(Display Value): -
- Input frequency: ·Solid state input 1: max. 50kHz (pulse width: min. 10㎲)</br>·Solid state input 2: max. 5kHz (pulse width: min. 100㎲)</br>※For F7, F8, F9, F10 operation mode, max. 1kHz (pulse width: min. 500㎲)</br>·Contact input: max. 45Hz (pulse width: min. 11ms)
- Measurement range: ·Operation mode F1, F2, F7, F8, F9, F10 : 0.0005Hz to 50kHz</br>·Operation mode F3, F4, F5, F6 : 0.01 to max. of each time range</br>·Operation mode F11, F12, F13, F16 : 0 to 99999</br>·Operation mode F14, F15 : -19999 to 99999
- Measurement accuracy: ·Operation mode F1, F2, F7, F8, F9, F10 : F.S.±0.05%rdg±1-digit</br>·Operation mode F3, F4, F5, F6 : F.S.±0.01%rdg±1-digit
- Prescale function: Direct input method (0.0001×10@(^-9) to 9.9999×10@(^9))
- Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Protection structure: IP54 (front part, IEC standard)
- Weight: Approx. 230g (approx. 140g)
