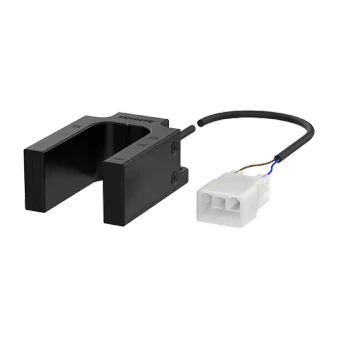

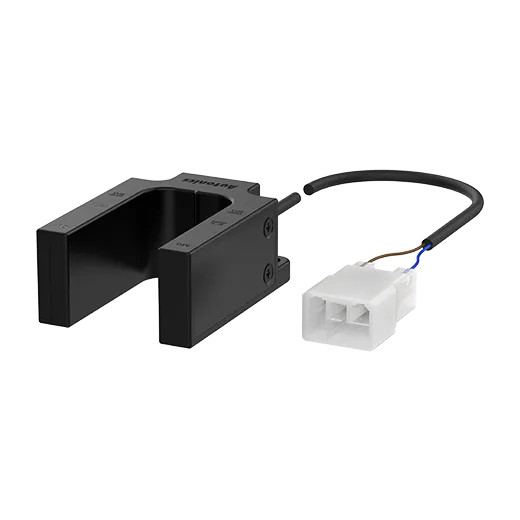

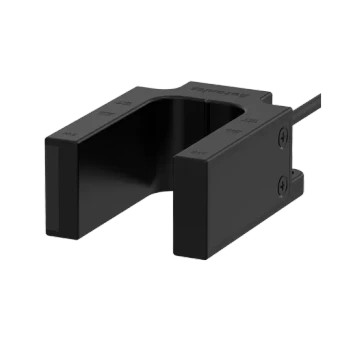

Autonics MU Series MU-1A-30-E

List Price:

$58.00

/each

Product Description

Autonics Magnetic Proximity Sensors, model MU-1A-30-E, from the MU Series product line.

Switching voltage: ≤ 24VDC@(=)
Contact type: Normally Open
Operation distance_OFF→ON: ± 10 mm
Operation distance_ON→OFF: ± 20 mm
Standard sensing target: Steel plate - a galvanized steel sheet 1.6t
Operating frequency: ≤ 500 Hz
Material: Cover/Case: PC (915R)
Protection structure: IP67(IEC standard)
Environment_Ambient temperature: -10 to 65 ℃, storage: -10 to 70 ℃ (no freezing or condensation)
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Insulation resistance: ≥1,000MΩ (at 500VDC megger)
Dielectric strength: 500VAC~ 50/60Hz for 1 min.
Vibration: 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours
Shock: 100m/s² (approx. 10G) in each X, Y, Z direction for 3 times
Applied REED SWITCH: Model : ORD324-10-15 (STANDEX MEDER)
Weight: ≈ 107 g (≈ 147.2 g)
