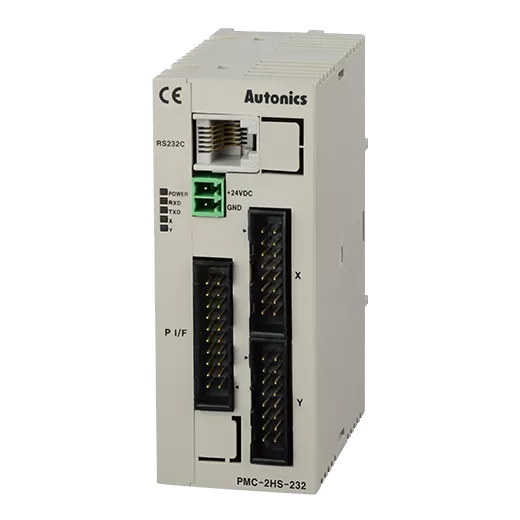

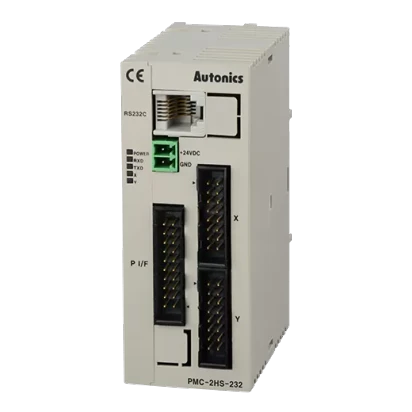

Autonics PMC-1HS/2HS Series PMC-2HS-232

List Price:

$543.00

/each

Product Description

Autonics Motion Controllers, model PMC-2HS-232, from the PMC-1HS/2HS Series product line.

Number Of Axes: 2-axis
Type: Independent type
Main Features: -
Input/Output Contact: Parallel I/F: 13/4</br>X-axis: 8/5 (general: 0/1)</br>Y-axis: 8/5 (general: 0/1)
Interpolations: -
Operation mode: INDEX, PROGRAM(64-step), JOG, CONTINUOUS
In-Position Setting: ABSOLUTE, INCREMENTAL
Drive Speed: 1 pps to 4 Mpps
Connection method: RS232C
Communication Protocol: Autonics protocol
Applied Library: -
Power supply: 24VDC @(=)
Index step numbers: 64 indexes per axis
Inposition range: -8,388,608 to 8,388,607 (supports pulse scaling function)
Drive speed numbers: 1 pps to 4 Mpps (1 to 8,000 × magnification 1 to 500)
Accessories_Common: User manual, CD
Accessories_Power connector: [CN1] MC1, 5/2-ST-3.5(PHOENIX): 1
Accessories_RS232C connector: [CN2] RS-232C communication cable (1.5m): 1
Accessories_P I/F connector: [CN3] 20P MIL standard, 2.54mm connector: 1
Accessories_X axis input/output connector: [CN4] 16P MIL standard, 2.54mm connector: 1 (In case of 2HS, using 2)
Accessories_Y axis input/output connector: [CN5] 16P MIL standard, 2.54mm connector: 1
Accessories_USB connector: -
Environment_Ambient temperature: 0 to 45℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 393.6g(approx. 100.2g)
