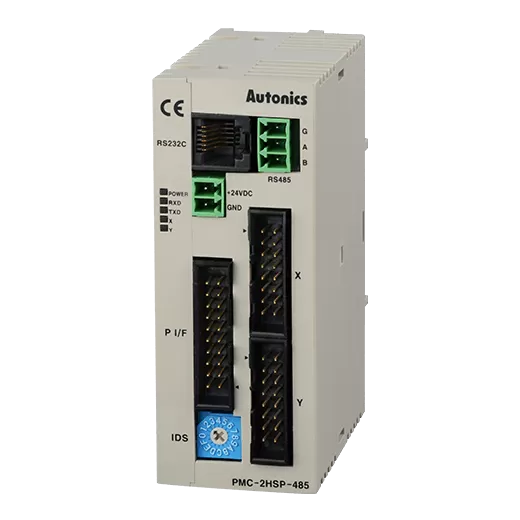

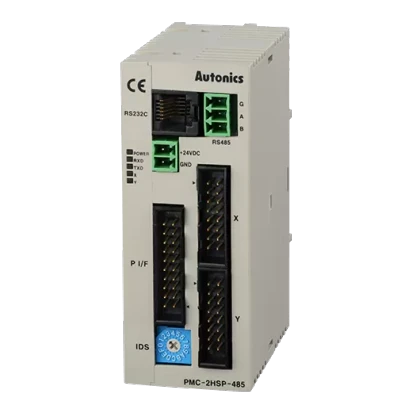

Autonics PMC-2HSP Series PMC-2HSP-485

List Price:

$543.00

/each

Product Description

Autonics Motion Controllers, model PMC-2HSP-485, from the PMC-2HSP Series product line.

Number Of Axes: 2-axis
Type: Independent type
Main Features: S-shaped acceleration/deceleration
Input/Output Contact: Parallel I/F: Input 13, Output 4X-axis: Input 8, Output 6 (general input 2, general output 2)Y-axis: Input 8, Output 6 (general input 2, general output 2)
Interpolations: 2-axis linear interpolation, circle interpolation, arc interpolation
Operation mode: INDEX, PROGRAM(200-step), JOG, CONTINUOUS
In-Position Setting: ABSOLUTE, INCREMENTAL
Drive Speed: 1 pps to 4 Mpps
Connection method: RS485
Communication Protocol: Modbus RTU
Applied Library: C programming language(provided DLL)
Power supply: 24VDC @(=)
Index step numbers: 64 indexes per axis
I/O: • Parallel I/F (CN3): 13 inputs, 4 outputs• X-axis (CN4) / Y-axis (CN5): 8 inputs, 6 outputs (general-purpose I/O, two of each)
Accessories: • [Common] Power connector, I/O connector: 3 (PI/F, X-axis, Y-axis), RS232C Communication cable (1.5m): 1• [USB type] USB Communication cable 1m: 1 •[RS485 type] RS485 connector: 1
Environment_Ambient temperature: 0 to 45℃, storage: -15 to 70℃
Environment_Ambient humidity: 20 to 90%RH, storage: 20 to 90%RH
Weight: Approx. 344g(approx. 101.5g)
