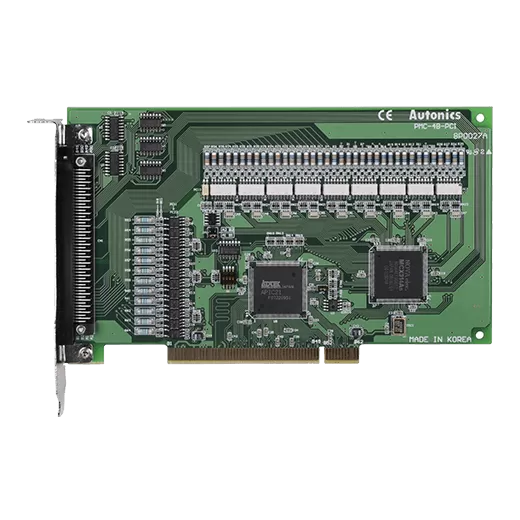

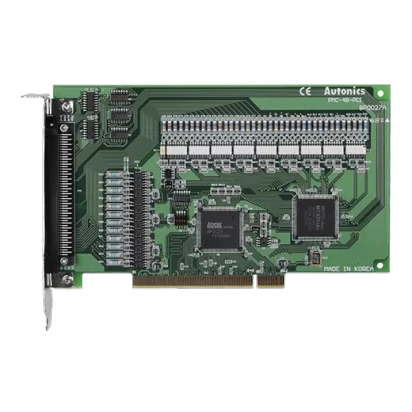

Autonics PMC-4B-PCI Series PMC-4B-PCI

List Price:

$1,754.00

/each

Product Description

Autonics Motion Controllers, model PMC-4B-PCI, from the PMC-4B-PCI Series product line.

Number Of Axes: 4-axis
Type: Board type
Main Features: S-shaped acceleration/deceleration, Constant linear velocity, Synchronized operation
Input/Output Contact: X, Y, Z, U-axis: Input 15, Output 8 (general output 4)
Interpolations: 2/3-axis linear interpolation, arc interpolation,</br>2/3-axis bit pattern interpolation, constant interpolation
Operation mode: User programming
In-Position Setting: ABSOLUTE, INCREMENTAL
Drive Speed: 1 pps to 4 Mpps
Connection method: PCI Slot
Communication Protocol: PCI bus
Applied Library: C programming language(provided DLL), LabView
Power supply: 24VDC @(=)
2/3-axis linear interpolation_Range: -2,147,483,648 to 2,147,483,647 for each axis
2/3-axis linear interpolation_Speed: 1 pps to 4 Mpps
2/3-axis linear interpolation_Position accuracy: Max. ±0.5LSB (within all interpolation range)
Circular interpolation_Range: -2,147,483,648 to 2,147,483,647 for each axis
Circular interpolation_Speed: 1 pps to 4 Mpps
Circular interpolation_Position accuracy: Max. ±1 LSB (within all interpolation range)
Environment_Ambient temperature: 0 to 45℃, storage: -10 to 55℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 654.4g (approx. 100.4g)
