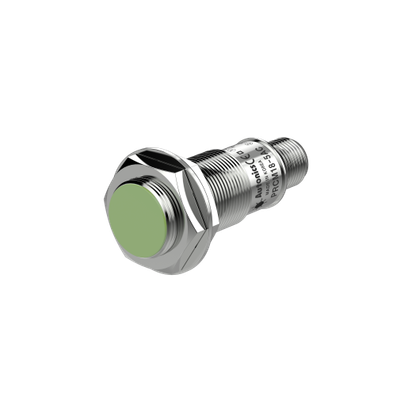

Autonics PR Series PRCM18-5AC

List Price:

$59.00

/each

Product Description

Autonics Inductive Proximity Sensors, model PRCM18-5AC, from the PR Series product line.

Wire type and power: AC 2-wire type 100-240VAC~
Sensing side diameter: M18
Sensing distance: 5mm
Installation: Flush
Standard sensing target: 18×18×1mm(iron)
Response frequency: 20Hz
Current specification: Leakage current: Max. 2.5mA
Control output: Normally Closed
Material: Brass(nickel plated)
Cable Standard/material: Standard connector
Protection structure: IP67(IEC standard)
Non-polarity: -
Body length: Standard type
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Residual voltage: Max. 10V
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
Weight: Approx. 66g(approx. 54g)

Write a Review

Brand:

Autonics Inductive Proximity Sensors, model PRCM18-5AC, from the PR Series product line.

Wire type and power: AC 2-wire type 100-240VAC~
Sensing side diameter: M18
Sensing distance: 5mm
Installation: Flush
Standard sensing target: 18×18×1mm(iron)
Response frequency: 20Hz
Current specification: Leakage current: Max. 2.5mA
Control output: Normally Closed
Material: Brass(nickel plated)
Cable Standard/material: Standard connector
Protection structure: IP67(IEC standard)
Non-polarity: -
Body length: Standard type
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Residual voltage: Max. 10V
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
Weight: Approx. 66g(approx. 54g)
