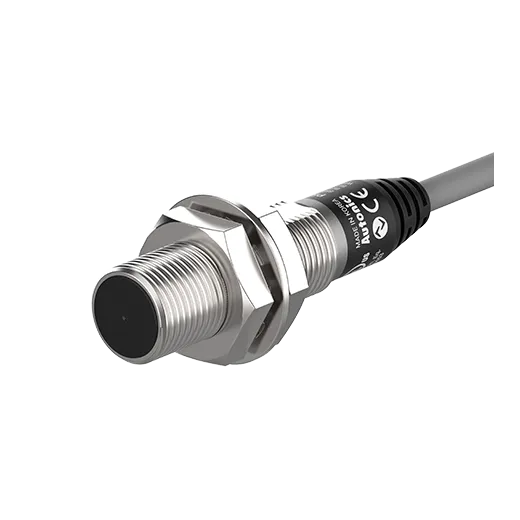

Autonics PRD Series PRD12-4D-V-IL2
Part Number #
AUT1050165

Autonics PRD Series PRD12-4D-V-IL2

List Price:
$80.00
/each
Product Description

Autonics Inductive Proximity Sensors, model PRD12-4D-V-IL2, from the PRD Series product line.

Specifications

  • Wire type and power: DC 3-wire type 12-24VDC @(=)
  • Sensing side diameter: M12
  • Sensing distance: 4mm
  • Installation: Flush
  • Standard sensing target: 12×12×1mm(iron)
  • Response frequency: 500Hz
  • Current specification: IO-Link mode: ≤ 25 mA, SIO mode: ≤ 20 mA
  • Control output: Max. 100mA
  • Material: Standard cable(Black): Polyvinyl chloride(PVC), </br> Oil resistant cable(Gray): Polyvinyl chloride(Oil resistant PVC),</br> Case/Nut: Nikel plated Brass, Washer: Nikel plated Iron, Sensing surface: PBT
  • Cable Standard/material: Oil resistant cable
  • Protection structure: IP67(IEC standard)
  • Non-polarity: -
  • Body length: Standard type
  • Environment_Ambient temperature: -25 to 70℃, storage: -25 to 70℃
  • Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
  • Hysteresis(distance): Max. 10% of sensing distance
  • Residual voltage: Max. 2V
  • Weight: ≈ 62g (≈ 74g)
  • Affection by temperature: -

Downloadable Materials

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

Autonics Inductive Proximity Sensors, model PRD12-4D-V-IL2, from the PRD Series product line.

Specifications

  • Wire type and power: DC 3-wire type 12-24VDC @(=)
  • Sensing side diameter: M12
  • Sensing distance: 4mm
  • Installation: Flush
  • Standard sensing target: 12×12×1mm(iron)
  • Response frequency: 500Hz
  • Current specification: IO-Link mode: ≤ 25 mA, SIO mode: ≤ 20 mA
  • Control output: Max. 100mA
  • Material: Standard cable(Black): Polyvinyl chloride(PVC), </br> Oil resistant cable(Gray): Polyvinyl chloride(Oil resistant PVC),</br> Case/Nut: Nikel plated Brass, Washer: Nikel plated Iron, Sensing surface: PBT
  • Cable Standard/material: Oil resistant cable
  • Protection structure: IP67(IEC standard)
  • Non-polarity: -
  • Body length: Standard type
  • Environment_Ambient temperature: -25 to 70℃, storage: -25 to 70℃
  • Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
  • Hysteresis(distance): Max. 10% of sensing distance
  • Residual voltage: Max. 2V
  • Weight: ≈ 62g (≈ 74g)
  • Affection by temperature: -

Downloadable Materials
