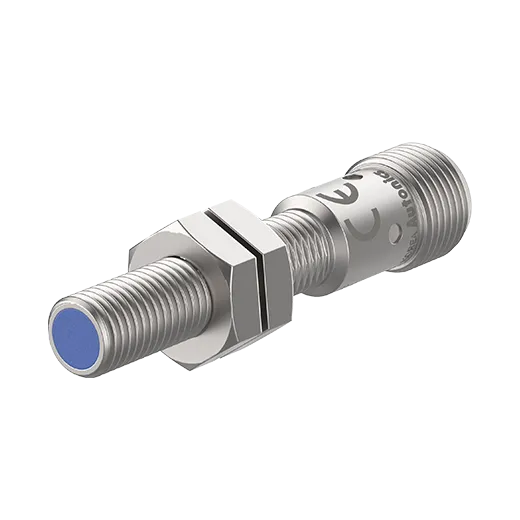

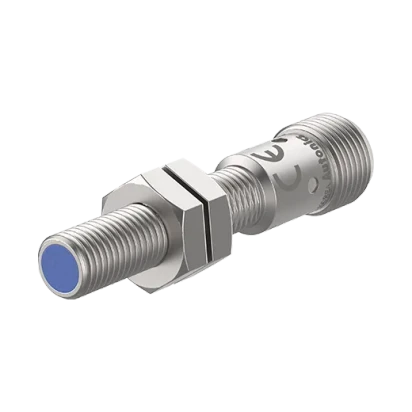

Autonics PRD Series PRDCM08-2DN

List Price:

$66.00

/each

Product Description

Autonics Inductive Proximity Sensors, model PRDCM08-2DN, from the PRD Series product line.

Wire type and power: DC 3-wire type 12-24VDC @(=)
Sensing side diameter: M8
Sensing distance: 2mm
Installation: Flush
Standard sensing target: 8×8×1mm(iron)
Response frequency: 1kHz
Current specification: Current consumption: Max. 10mA
Control output: NPN Normally Open
Material: Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
Cable Standard/material: Standard connector
Protection structure: IP67(IEC standard)
Non-polarity: -
Body length: Standard type
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 15% of sensing distance
Residual voltage: Max. 2V
Weight: Approx. 12g(approx. 32g)
Affection by temperature: ≤ ± 10 % for sensing distance at ambient temperature 20 ℃(DIA. of sensing side Ø 8 mm: ≤ ± 15 %)
