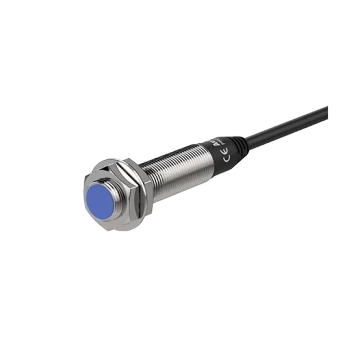

Autonics PRD Series PRDCM12-4DP

Autonics PRD Series PRDCM12-4DP

Part Number #

AUT1050065

Autonics PRD Series PRDCM12-4DP

List Price:

$55.00

/each

Product Description

Autonics Inductive Proximity Sensors, model PRDCM12-4DP, from the PRD Series product line.

Specifications

Wire type and power: DC 3-wire type 12-24VDC @(=)
Sensing side diameter: M12
Sensing distance: 4mm
Installation: Shield(flush)
Standard sensing target: 12×12×1mm(iron)
Response frequency: 500Hz
Current specification: Current consumption: Max. 10mA
Control output: PNP Normally Open
Material: Brass(nickel plated)
Cable Standard/material: Standard connector
Protection structure: IP67
Non-polarity: -
Body length: Standard type
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Residual voltage: Max. 1.5V
Weight: ≈ 20g (≈ 49g)
Affection by temperature: -
