Autonics PRD Series PRDCM18-7DP2

Autonics PRD Series PRDCM18-7DP2

Part Number #

AUT1050098

Autonics PRD Series PRDCM18-7DP2

List Price:

$53.00

/each

Product Description

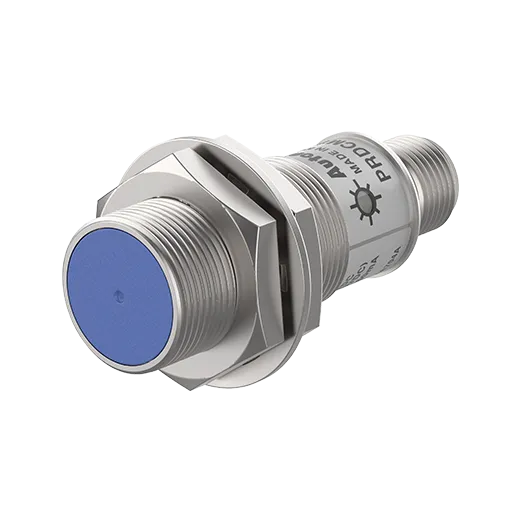

Autonics Inductive Proximity Sensors, model PRDCM18-7DP2, from the PRD Series product line.

Specifications

Wire type and power: DC 3-wire type 12-24VDC @(=)
Sensing side diameter: M18
Sensing distance: 7mm
Installation: Shield(flush)
Standard sensing target: 20×20×1mm(iron)
Response frequency: 300Hz
Current specification: Current consumption: Max. 10mA
Control output: PNP Normally Closed
Material: Brass(nickel plated)
Cable Standard/material: Standard connector
Protection structure: IP67
Non-polarity: -
Body length: Standard type
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Residual voltage: Max. 1.5V
Weight: ≈ 41g (≈ 81g)
Affection by temperature: -
