Autonics PRD Series PRDCML18-7DN
Part Number #
AUT1050102

Autonics PRD Series PRDCML18-7DN

List Price:
$59.00
/each
Product Description

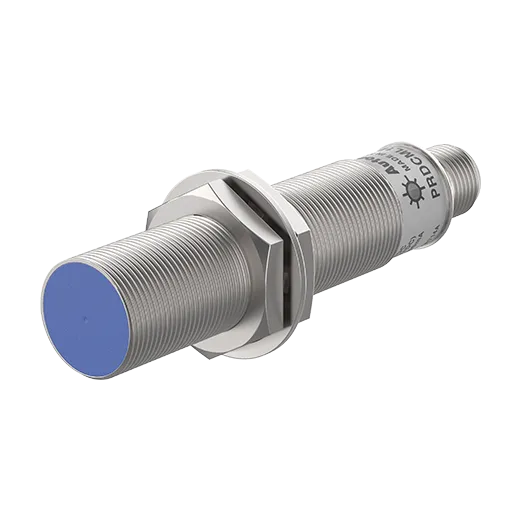

Autonics Inductive Proximity Sensors, model PRDCML18-7DN, from the PRD Series product line.

Specifications

  • Wire type and power: DC 3-wire type 12-24VDC @(=)
  • Sensing side diameter: M18
  • Sensing distance: 7mm
  • Installation: Shield(flush)
  • Standard sensing target: 20×20×1mm(iron)
  • Response frequency: 300Hz
  • Current specification: Current consumption: Max. 10mA
  • Control output: NPN Normally Open
  • Material: Brass(nickel plated)
  • Cable Standard/material: Standard connector
  • Protection structure: IP67
  • Non-polarity: -
  • Body length: Long body
  • Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
  • Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
  • Hysteresis(distance): Max. 10% of sensing distance
  • Residual voltage: Max. 1.5V
  • Weight: ≈ 60g (≈ 78g)
  • Affection by temperature: -
