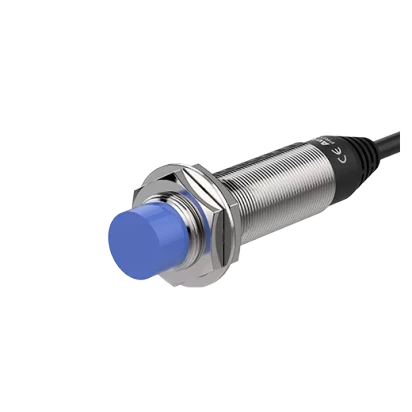

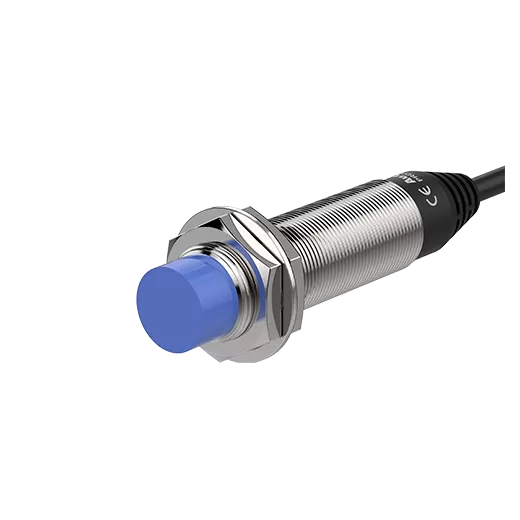

Autonics PRD Series PRDL18-14DP2
Part Number #
AUT1050086

Autonics PRD Series PRDL18-14DP2

List Price:
$39.00
/each
Product Description

Autonics Inductive Proximity Sensors, model PRDL18-14DP2, from the PRD Series product line.

Specifications

  • Wire type and power: DC 3-wire type 12-24VDC @(=)
  • Sensing side diameter: M18
  • Sensing distance: 14mm
  • Installation: Non-shield(non-flush)
  • Standard sensing target: 40×40×1mm(iron)
  • Response frequency: 200Hz
  • Current specification: Current consumption: Max. 10mA
  • Control output: PNP Normally Closed
  • Material: Brass(nickel plated)
  • Cable Standard/material: Standard cable
  • Protection structure: IP67
  • Non-polarity: -
  • Body length: Long body
  • Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
  • Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
  • Hysteresis(distance): Max. 10% of sensing distance
  • Residual voltage: Max. 1.5V
  • Weight: ≈ 127g (≈ 145g)
  • Affection by temperature: -
