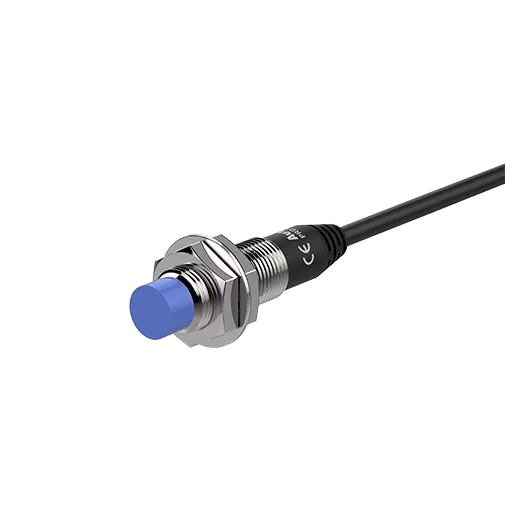

Autonics PRD Series PRDT12-8DO

Autonics PRD Series PRDT12-8DO

Part Number #

AUT1050040

Autonics PRD Series PRDT12-8DO

List Price:

$41.00

/each

Product Description

Autonics Inductive Proximity Sensors, model PRDT12-8DO, from the PRD Series product line.

Specifications

Wire type and power: DC 2-wire type 12-24VDC @(=)
Sensing side diameter: M12
Sensing distance: 8mm
Installation: Non-shield(non-flush)
Standard sensing target: 25×25×1mm(iron)
Response frequency: 400Hz
Current specification: Leakage current: Max. 0.6mA
Control output: Normally Open
Material: Brass(nickel plated)
Cable Standard/material: Standard cable
Protection structure: IP67
Non-polarity: -
Body length: Standard type
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Residual voltage: Max. 3.5V
Weight: ≈ 62g (≈ 74g)
Affection by temperature: -

Downloadable Materials
