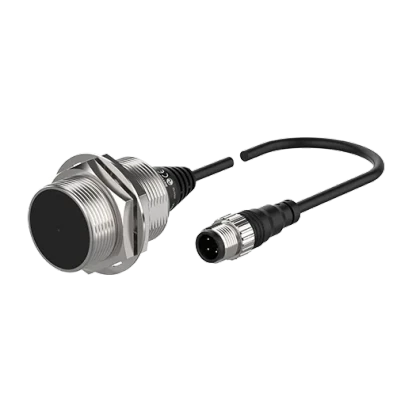

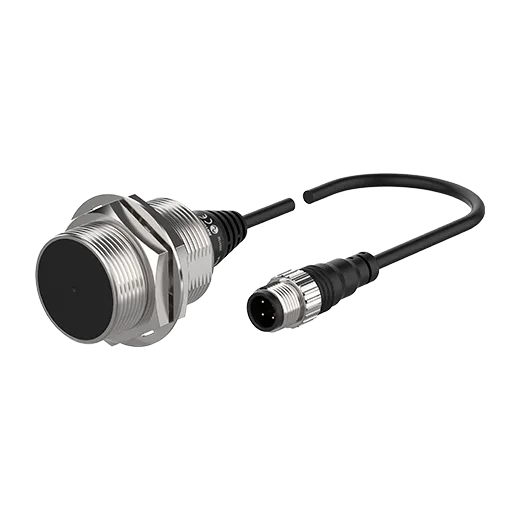

Autonics PRD Series PRDW30-15D-IL2

List Price:

$142.00

/each

Product Description

Autonics Inductive Proximity Sensors, model PRDW30-15D-IL2, from the PRD Series product line.

Wire type and power: DC 3-wire type 12-24VDC @(=)
Sensing side diameter: M30
Sensing distance: 15mm
Installation: Flush
Standard sensing target: 45×45×1mm(iron)
Response frequency: 100Hz
Current specification: IO-Link mode: ≤ 25 mA, SIO mode: ≤ 20 mA
Control output: Max. 100mA
Material: Standard cable(Black): Polyvinyl chloride(PVC), </br> Oil resistant cable(Gray): Polyvinyl chloride(Oil resistant PVC),</br> Case/Nut: Nikel plated Brass, Washer: Nikel plated Iron, Sensing surface: PBT
Cable Standard/material: Standard connector
Protection structure: IP67(IEC standard)
Non-polarity: -
Body length: Standard type
Environment_Ambient temperature: -25 to 70℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Residual voltage: Max. 2V
Weight: ≈ 108g (≈ 145g)
Affection by temperature: -
