Autonics PRD Series PRDWT08-2DO-V

List Price:

$63.00

/each

Product Description

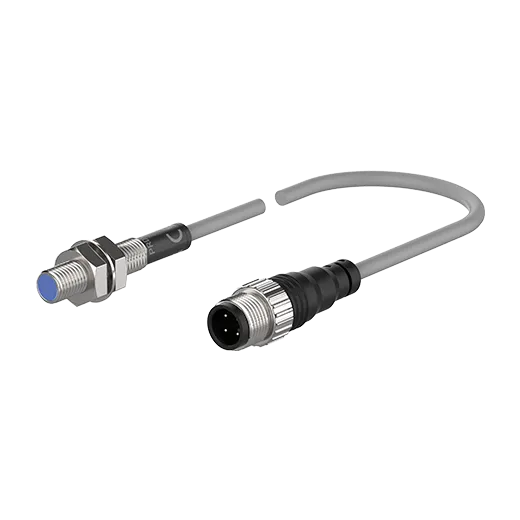

Autonics Inductive Proximity Sensors, model PRDWT08-2DO-V, from the PRD Series product line.

Wire type and power: DC 2-wire type 12-24VDC @(=)
Sensing side diameter: M8
Sensing distance: 2mm
Installation: Shield(flush)
Standard sensing target: 8×8×1mm(iron)
Response frequency: 1kHz
Current specification: Leakage current: Max. 0.8mA
Control output: Normally Open
Material: Case/Nut: Nikel plated Brass (case of PRD□T08: SUS303), Washer: Nikel plated Iron, Sensing surface: Heat-resistant ABS (PRD□T08: PBT)</br>Standard cable(Black): Polyvinyl chloride(PVC), Oil resistant cable(Gray): Oil resistant Polyvinyl chloride(PVC)
Cable Standard/material: Oil resistant cable
Protection structure: IP67
Non-polarity: -
Body length: Standard type
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 15% of sensing distance
Residual voltage: Max. 3.5V
Weight: Approx. 25g(approx. 45g)
Affection by temperature: -
