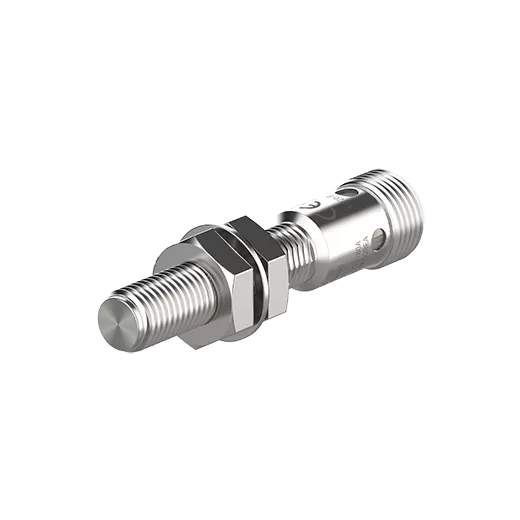

Autonics PRFD Series PRFDACM08-2DN

List Price:

$215.00

/each

Product Description

Autonics Inductive Proximity Sensors, model PRFDACM08-2DN, from the PRFD Series product line.

Sensing distance: 2mm
Sensing side diameter: 8mm
Hysteresis(distance): Max. 15% of sensing distance
Standard sensing target: 12×12×1mm(iron)
Response frequency: 150Hz
Indicator: Operation indicator (orange), stable indicator (green), Abnormal detect indicator (cross-flashing green, orange)
Weight: ≈ 10 g (≈ 35 g)
Power supply: 10 - 30 VDC@(=)(ripple P-P: ≤ 10 %)
Current specification: Current consumption: Max. 20mA
Control output: Max. 100mA
Residual voltage: ≤ 2.5 V
Protection circuit: Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
Insulation resistance: ≥ 50 MΩ (500 VDC@(=) megger)
Dielectric strength: Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
Vibration: 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours
Shock: 500 m/s² (≈ 50 G) in each X, Y, Z direction for 10 times)
Environment_Ambient temperature: -25 to 70℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Protection structure: IP66, IP67 (IEC standard), IP67G (JEM standard), IP68
Connection: Connector models
Connector type: M12 plug connector
Material: Case / Nut: stainless steel 303 (SUS303, PTFE coated), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303, PTFE coated)
