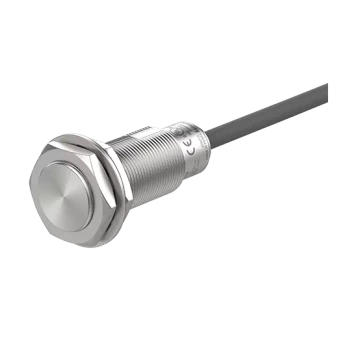

Autonics PRFD Series PRFDWT18-7DO-IV

List Price:

$152.00

/each

Product Description

Autonics Inductive Proximity Sensors, model PRFDWT18-7DO-IV, from the PRFD Series product line.

Sensing distance: 7mm
Sensing side diameter: 18mm
Hysteresis(distance): Max. 15% of sensing distance
Standard sensing target: 30×30×1mm(iron)
Response frequency: 80Hz
Indicator: Stability indicator (green), operation indicator (red)
Weight: Approx. 132g(approx. 97g)
Power supply: 12 - 24 VDC@(=)(ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC@(=)
Current specification: Leakage current: Max. 0.8mA
Control output: 3 to 100 mA
Residual voltage: Max. 3.5V
Protection circuit: Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
Insulation resistance: ≥ 50 MΩ (500 VDC@(=) megger)
Dielectric strength: Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
Vibration: 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours
Shock: 1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times
Environment_Ambient temperature: -25 to 70℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Protection structure: IP67(IEC standard)
Connection: Cable connector type
Connector type: M12 Connector
Material: Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303)
