Autonics PR Series PRL18-8AO

List Price:

$45.00

/each

Product Description

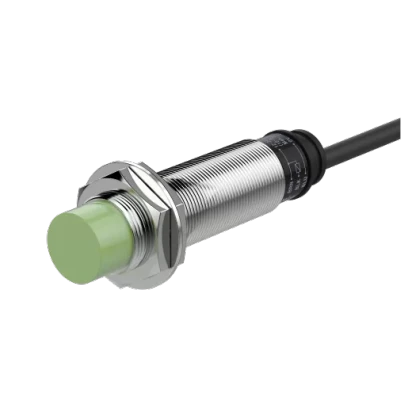

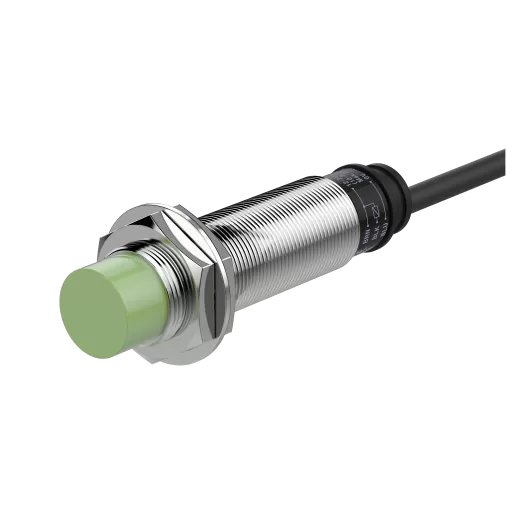

Autonics Inductive Proximity Sensors, model PRL18-8AO, from the PR Series product line.

Wire type and power: AC 2-wire type</br>100-240VAC~
Sensing side diameter: M18
Sensing distance: 8mm
Installation: Non-flush
Standard sensing target: 25×25×1mm(iron)
Response frequency: 20Hz
Current specification: Leakage current: Max. 2.5mA
Control output: Normally Open
Material: Brass(nickel plated)
Cable Standard/material: Standard cable
Protection structure: IP67(IEC standard)
Non-polarity: -
Body length: Long body
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Residual voltage: Max. 10V
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
Weight: Approx. 142g(approx. 130g)

Write a Review

Brand:

Autonics Inductive Proximity Sensors, model PRL18-8AO, from the PR Series product line.

Wire type and power: AC 2-wire type</br>100-240VAC~
Sensing side diameter: M18
Sensing distance: 8mm
Installation: Non-flush
Standard sensing target: 25×25×1mm(iron)
Response frequency: 20Hz
Current specification: Leakage current: Max. 2.5mA
Control output: Normally Open
Material: Brass(nickel plated)
Cable Standard/material: Standard cable
Protection structure: IP67(IEC standard)
Non-polarity: -
Body length: Long body
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Residual voltage: Max. 10V
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
Weight: Approx. 142g(approx. 130g)
