Autonics PR Series PRWT18-8DC

List Price:

$43.00

/each

Product Description

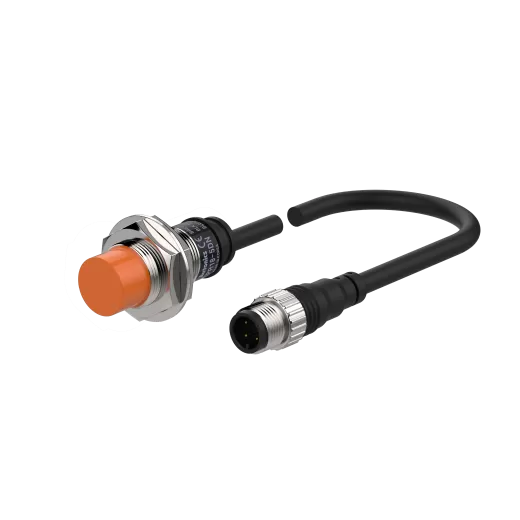

Autonics Inductive Proximity Sensors, model PRWT18-8DC, from the PR Series product line.

Wire type and power: DC 2-wire type 12-24VDC @(=)
Sensing side diameter: M18
Sensing distance: 8mm
Installation: Non-flush
Standard sensing target: 25×25×1mm(iron)
Response frequency: 350Hz
Current specification: Leakage current: Max. 0.6mA
Control output: Normally Closed
Material: Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
Cable Standard/material: Standard connector
Protection structure: IP67(IEC standard)
Non-polarity: -
Body length: Standard type
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Residual voltage: Max. 3.5V
Insulation type: -
Weight: Approx. 70g(approx. 58g)
