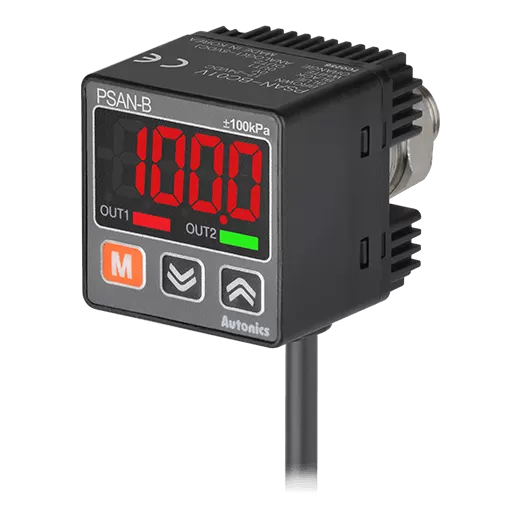

Autonics PSAN Series PSAN-BC01PV-9/16-18UNF

List Price:

$345.00

/each

Product Description

Autonics Pressure Sensors, model PSAN-BC01PV-9/16-18UNF, from the PSAN Series product line.

Applicable fluid: (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
Pressure port direction: Rear fitting
Pressure port: 9/16-18UNF
Connection type: Cable type(cable type cable: 3m)
Pressure type: Compound pressure
Rated pressure range: -101.3 to 100.0kPa
Display pressure unit: kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O
Control output_NPN open collector: -
Control output_PNP open collector: PNP open collector
Option input/output: Voltage(1-5VDC @(=)) output
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Voltage output type: Max. 50mA</br>Current output type: Max. 75mA
Protection structure: IP65
Control output_Hysteresis: Min. display interval
Control output_Repeat error: ±0.2% F.S. ±Min. display interval
Control output_Response time: Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 30 to 80% RH, storage: 30 to 80% RH
Material: Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
Weight: Approx. 167g(approx. 90g)
