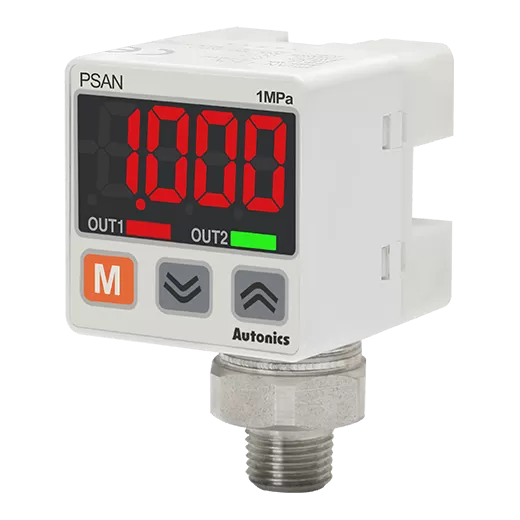

Autonics PSAN Series PSAN-L1CA-NPT1/8

List Price:

$347.00

/each

Product Description

Autonics Pressure Sensors, model PSAN-L1CA-NPT1/8, from the PSAN Series product line.

Applicable fluid: (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
Pressure port direction: Bottom fitting
Pressure port: NPT1/8
Connection type: Connector type(connector type cable: 2m)
Pressure type: Standard pressure
Rated pressure range: 0 to 1,000kPa
Display pressure unit: MPa, kPa, kgf/cm², bar, psi
Control output_NPN open collector: NPN open collector
Control output_PNP open collector: -
Option input/output: Current output(DC4-20mA)
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Voltage output type: Max. 50mA</br>Current output type: Max. 75mA
Protection structure: IP40
Control output_Hysteresis: Min. display interval
Control output_Repeat error: ±0.2% F.S. ±Min. display interval
Control output_Response time: Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 30 to 80% RH, storage: 30 to 80% RH
Material: Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
Weight: Approx. 173g(approx. 88g)
