Autonics PSB Series PSB-C01C-M5

Autonics PSB Series PSB-C01C-M5

Part Number #

AUT1049374

Autonics PSB Series PSB-C01C-M5

List Price:

$153.00

/each

Product Description

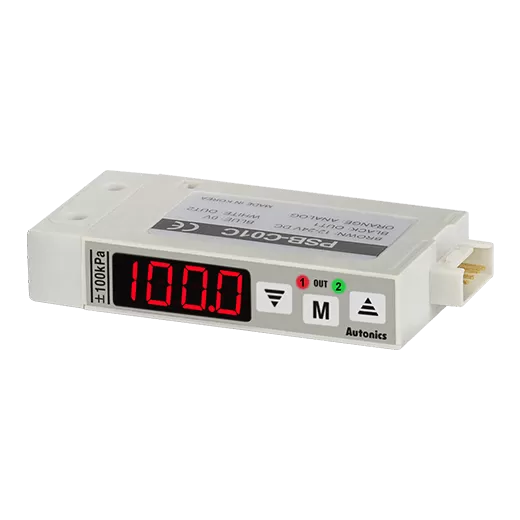

Autonics Pressure Sensors, model PSB-C01C-M5, from the PSB Series product line.

Specifications

Applicable fluid: (Pneumatic type) Air, Non-corrosive gas
Pressure port: M5
Connection type: Connector type(Connector type cable: 3m)
Pressure type: Compound pressure
Rated pressure range: -100.0 to 100.0kPa
Display pressure unit: kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O
Control output_NPN open collector: NPN open collector
Control output_PNP open collector: -
Option input/output: Voltage(1-5VDC @(=)) output
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 50mA
Protection structure: IP40
Control output_Hysteresis: 2-digit fixed
Control output_Repeat error: ±0.2% F.S. ±2-digit
Control output_Response time: Selectable 2.5ms, 5ms, 100ms, 500ms
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Material: Case, Pressure port, Cover: IXEF
Weight: Approx. 160g(approx. 70g)
