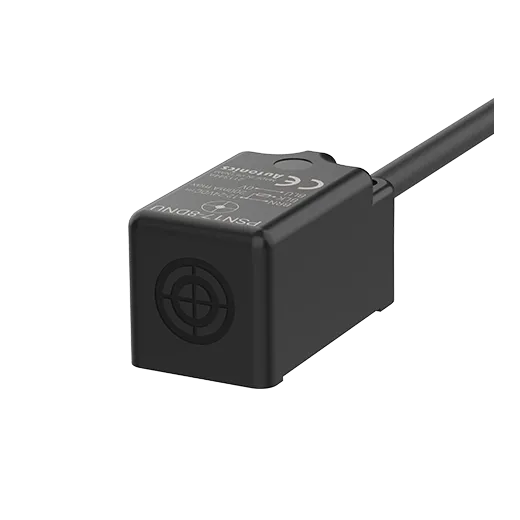

Autonics PS Series PSN17-8DNU

Autonics PS Series PSN17-8DNU

Part Number #

AUT1049850

Autonics PS Series PSN17-8DNU

List Price:

$24.00

/each

Product Description

Autonics Sockets, model PSN17-8DNU, from the PS Series product line.

Specifications

Wire type and power: DC 3-wire type 12-24VDC @(=)
Sensing side size: Frame size 17mm
Sensing distance: 8mm
Standard sensing target: 25×25×1mm(iron)
Response frequency: 200Hz
Current specification: Current consumption: Max. 10mA
Control output: NPN Normally Open
Sensing type: Upper sensing type
Material: Heat-resistant ABS
Protection structure: IP67
Different frequency: -
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Weight: ≈ 62g (≈ 83g)
