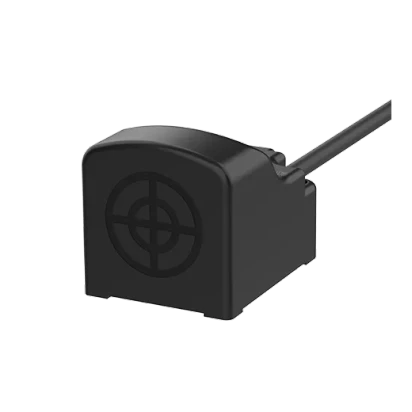

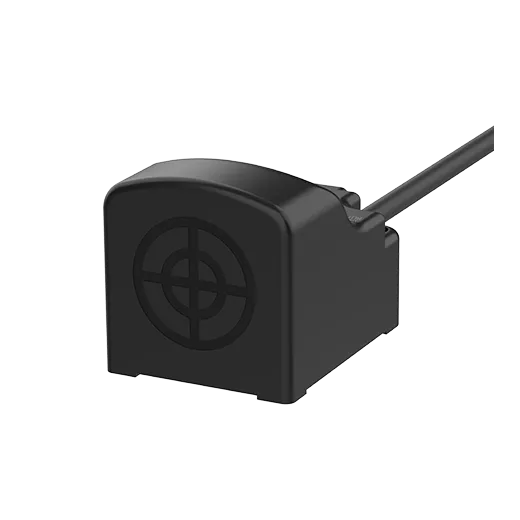

Autonics PS Series PSN40-20DN2

Autonics PS Series PSN40-20DN2

Part Number #

AUT1049864

Autonics PS Series PSN40-20DN2

List Price:

$41.00

/each

Product Description

Autonics Sockets, model PSN40-20DN2, from the PS Series product line.

Specifications

Wire type and power: DC 3-wire type 12-24VDC @(=)
Sensing side size: Frame size 40mm
Sensing distance: 20mm
Standard sensing target: 60×60×1mm(iron)
Response frequency: 100Hz
Current specification: Current consumption: Max. 10mA
Control output: NPN Normally Closed
Sensing type: Standard type(front sensing type)
Material: Heat-resistant ABS
Protection structure: IP67
Different frequency: -
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Weight: ≈ 135g (≈225g)

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Autonics Sockets, model PSN40-20DN2, from the PS Series product line.

Specifications

Wire type and power: DC 3-wire type 12-24VDC @(=)
Sensing side size: Frame size 40mm
Sensing distance: 20mm
Standard sensing target: 60×60×1mm(iron)
Response frequency: 100Hz
Current specification: Current consumption: Max. 10mA
Control output: NPN Normally Closed
Sensing type: Standard type(front sensing type)
Material: Heat-resistant ABS
Protection structure: IP67
Different frequency: -
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Weight: ≈ 135g (≈225g)
