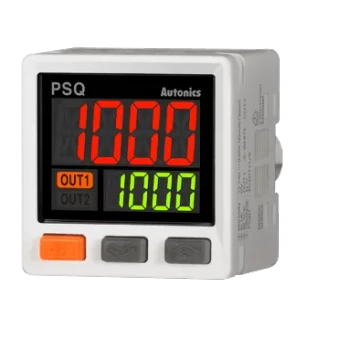

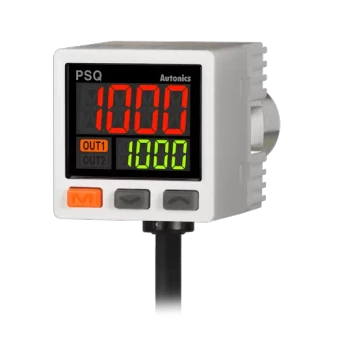

Autonics PSQ Series PSQ-BC1U-NPT1/4

List Price:

$478.00

/each

Product Description

Autonics Pressure Sensors, model PSQ-BC1U-NPT1/4, from the PSQ Series product line.

Applicable fluid: (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
Pressure port direction: Rear fitting
Pressure port: NPT1/4
Connection type: Cable type(cable type cable: 3m)
Pressure type: Compound pressure
Rated pressure range: -100 to 1,000kPa
Display pressure unit: MPa, kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O
Control output: Select one at parameter settingNPN open collector outputPNP open collector output
Option input/output: Select one at parameter settingVoltage(1-5VDC @(=)) outputCurrent(DC4-20mA) outputAUTO SHIFT, REMOTE ZERO, HOLD input
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 50mA(current output: Max. 70mA)
Protection structure: IP65
Control output_Hysteresis: Min. display interval
Control output_Repeat error: ±0.2% F.S. ±Min. display interval
Control output_Response time: Select one: 2.5ms, 5ms, 10ms, 25ms, 50ms, 100ms, 250ms, 500ms, 1,000ms, 5,000ms
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 30 to 80% RH, storage: 30 to 80% RH
Material: Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: Stainless steel 316L
Weight: Approx.210g(approx. 125g)
