Autonics PSS Series PSS-01V-R06

Autonics PSS Series PSS-01V-R06

Part Number #

AUT1049384

Autonics PSS Series PSS-01V-R06

List Price:

$96.00

/each

Product Description

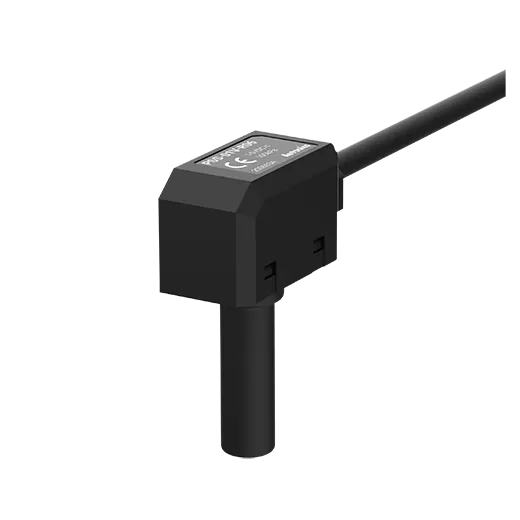

Autonics Pressure Sensors, model PSS-01V-R06, from the PSS Series product line.

Specifications

Applicable fluid: (Pneumatic type) Air, Non-corrosive gas
Pressure port: Ø6 reducer
Connection type: Cable type(cable type cable: 3m)
Pressure type: Standard pressure
Rated pressure range: 0.0 to 100.0kPa
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 15mA
Protection structure: IP40
Material: Front/Rear case and pressure port: PBT
Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Sold separately: Sensor connector wire mount plug(CNE-P04-YG)
Weight: Approx. 60g(approx. 26g)

Downloadable Materials
