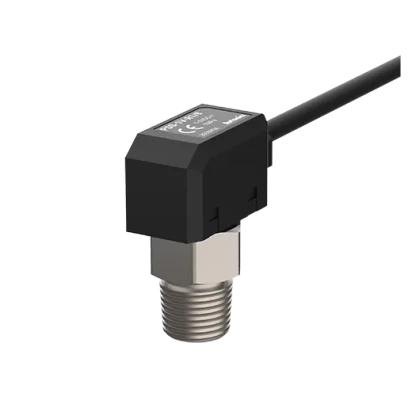

Autonics PSS Series PSS-1V-R1/8

Autonics PSS Series PSS-1V-R1/8

Part Number #

AUT1049378

Autonics PSS Series PSS-1V-R1/8

List Price:

$96.00

/each

Product Description

Autonics Pressure Sensors, model PSS-1V-R1/8, from the PSS Series product line.

Specifications

Applicable fluid: (Pneumatic type) Air, Non-corrosive gas
Pressure port: R1/8
Connection type: Cable type(cable type cable: 3m)
Pressure type: Standard pressure
Rated pressure range: 0 to 1,000kPa
Option output: Voltage(1-5VDC @(=)) output
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 15mA
Protection structure: IP40
Material: Front/Rear case: PBT, Pressure port: Nickel plated brass
Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Sold separately: Sensor connector wire mount plug(CNE-P04-YG)
Weight: Approx. 60g(approx. 26g)
