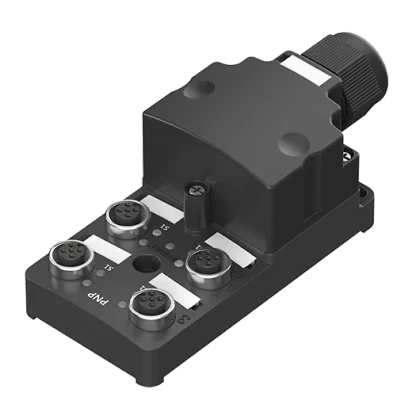

Autonics PT (5-Pin Connector) Series PT4-S3DP5K

List Price:

$82.00

/each

Product Description

Autonics Distribution Boxes, model PT4-S3DP5K, from the PT (5-Pin Connector) Series product line.

Number of ports: 4-port
Input logic: PNP
Output specification: 1-signal (DC 3-wire type)
Power supply: 12-24VDC @(=)
Rated current: 2A(per signal), 2A(per port), 7A(total)
Leakage current: -
Connection life cycle: Min. 200 operations
Number of M12 connector pins: 5-pin
Case color: Black
Hood cover: Including hood cover
Protection structure: IP67(waterproof cover), IP52(protection cover)
Connection method for external signal: Spring terminal type
Material: Case: Polybutylene terephthalate (G15%), Name plate: Polycarbonate, Cover: Polybutylene terephthalate(G15%), Cover nut: Polyamide 6 (G15%)
Environment_Ambient temperature: -25 to 75, storage: -30 to 80
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 270g (approx. 140g)
