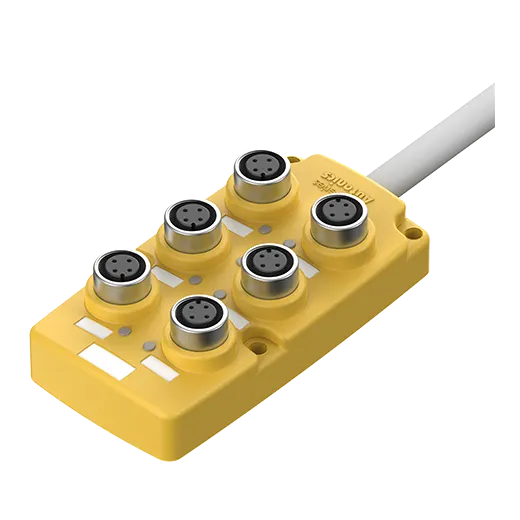

Autonics PT (4-Pin Connector) Series PT6-2D

Autonics PT (4-Pin Connector) Series PT6-2D

Part Number #

AUT1054460

Autonics PT (4-Pin Connector) Series PT6-2D

List Price:

$128.00

/each

Product Description

Autonics Distribution Boxes, model PT6-2D, from the PT (4-Pin Connector) Series product line.

Specifications

Number of ports: 6-port
Input logic: -
Output specification: 1-signal (DC 2-wire type)
Power supply: 12-24VDC @(=)
Rated current: 2A(per signal), 4A(per port), 10A(total)
Leakage current: Max. 0.5mA
Connection life cycle: Min. 200 operations
Number of M12 connector pins: 4-pin
Cable length: 5m
Protection structure: IP67(waterproof cover), IP52(protection cover)
Connection method for external signal: Cable type
Material: Case: PBT (G15%), General cable (gray):Polyvinyl chloride (PVC)
Environment_Ambient temperature: -25 to 75, storage: -30 to 80
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 720g (approx. 680g)
