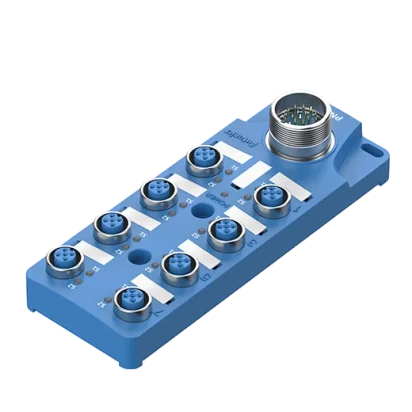

Autonics PT (5-Pin Connector) Series PT8-C4DP5

List Price:

$143.00

/each

Product Description

Autonics Distribution Boxes, model PT8-C4DP5, from the PT (5-Pin Connector) Series product line.

Number of ports: 8-port
Input logic: PNP
Output type_1-Signal(DC 3-Wire type): -
Output type_1/2-Signal(DC 4-Wire type): 2-Signal(DC 4-Wire type)
Power supply: 12-24VDC @(=)
Rated current: 2A(per signal), 4A(per port), 10A(total)
Leakage current: Max. 0.5mA
Connection life cycle: Min. 200 operations
Number of M12 connector pins: 5-pin
Protection structure: IP67(waterproof cover), IP52(protection cover)
Connection method for external signal: Connector type
Material: Case: PBT (G15%), Name plate: PC, General cable (black): Polyvinyl chloride (PVC)
Environment_Ambient temperature: -25 to 75, storage: -30 to 80
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 295g (approx. 185g)
