Autonics S3SF Series S3SFN-L7KG2AD
Part Number #
AUT1053171

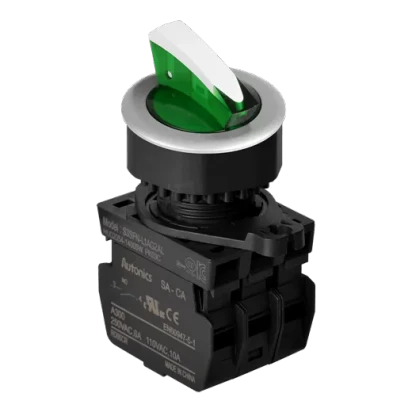

Autonics S3SF Series S3SFN-L7KG2AD

List Price:
$21.00
/each
Product Description

Autonics Control Switches, model S3SFN-L7KG2AD, from the S3SF Series product line.

Specifications

  • Mechanical characteristics_Operation angle: Left 45˚, Right 45˚
  • Contact block_Electrical specification_Power voltage/current: 110VAC~/10A, 250VAC~/6A
  • LED block_Power supply: 12-24VAC~ 50/60Hz, 12-24VDC @(=)
  • LED block_Current consumption: Max. 20mA
  • Protection structure: IP52
  • Weight_Mounting hole_Ø22/25: -
  • Weight_Mounting hole_Ø30: Approx. 21g
  • Weight_Mounting hole_□30: -
  • Weight_Housing: Approx. 7g
  • Weight_Contact block_Modular type A/B contact: -
  • Weight_Contact block_Singular type A/B contact: Approx. 11g
  • Weight_LED block_AC/DC voltage type: Approx. 11g
  • Weight_LED block_AC voltage type: -
  • Operation type: Short lever 3-position, maintained
  • Color: Green
  • Contact block: A contact: 2
  • Contact block type: Singular type
  • Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
