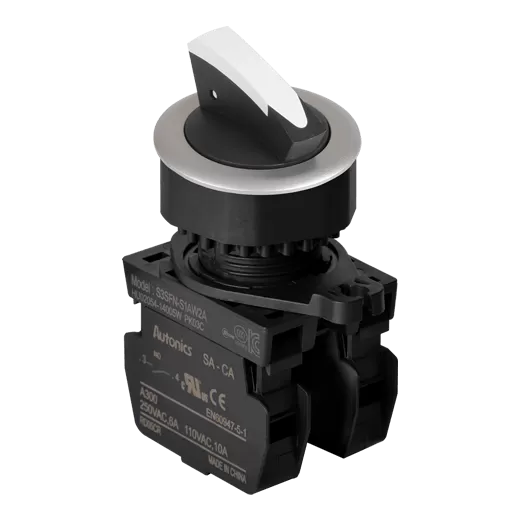

Autonics S3SF Series S3SFN-SCKW2AM

List Price:

$16.00

/each

Product Description

Autonics Control Switches, model S3SFN-SCKW2AM, from the S3SF Series product line.

Mechanical characteristics_Operation angle: Left 45˚, Right 45˚
Contact block_Electrical specification_Power voltage/current: 110VAC~/10A, 250VAC~/6A
LED block_Power supply: -
LED block_Current consumption: -
Protection structure: IP52
Weight_Mounting hole_Ø22/25: -
Weight_Mounting hole_Ø30: Approx. 21g
Weight_Mounting hole_□30: -
Weight_Housing: Approx. 7g
Weight_Contact block_Modular type A/B contact: Approx. 10g
Weight_Contact block_Singular type A/B contact: -
Weight_LED block_AC/DC voltage type: -
Weight_LED block_AC voltage type: -
Operation type: Short lever 3-position, spring return from left
Color: White
Contact block: A contact: 2
Contact block type: Modular type
Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
