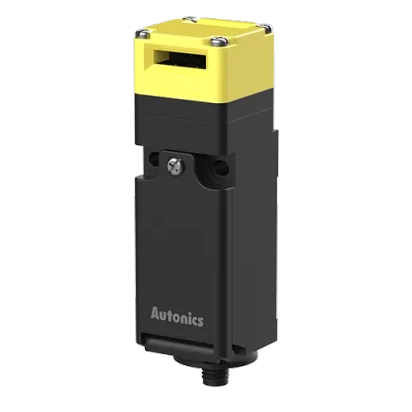

Autonics SFD Series SFD-2B-C

List Price:

$72.00

/each

Product Description

Autonics Safety Door Switches, model SFD-2B-C, from the SFD Series product line.

Rated load voltage & current: Resistive load : 6A/250VAC~, 0.6A/250VDC@(=)</br>Inductive load : AC-15 3A/240VAC~,DC-13 0.27A/250VDC@(=)
Directing opening force: Min. 80N
Directing opening distance: Min. 10mm
Operating speed: 0.05 to 1m/s
Operating frequency: Max. 20/min
Applicable cable: AWG 20-18 (0.5 to 0.75mm²)
Insulation resistance: 100MΩ or more (500VDC megger basis)
Contact resistance: Max. 50mΩ (initial value)
Dielectric strength_Between the terminals: 2kV
Dielectric strength_Between each terminal and non-live part: 5kV
Conditional short circuit current: 100A
Life cycle_Electrical: Min. 100,000 operations (240VAC~ 6A)
Life cycle_Mechanical: Min. 1,000,000 operations
Vibration_Malfunction: 0.75mm amplitude at frequency of 10 to 55Hzin each X,Y,Z direction for 10 min
Shock: 1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
Shock_Malfunction: 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature: -30 to 70℃, storage: -40 to 70℃
Environment_Ambient humidity: 35 to 90%RH, storage : 35 to 90%RH
Protection structure: IP67(IEC standerd, except head)
Connection Type: M12 Connector
Material: Head: polyamide 6, case: polyamide 6, operation key: stainless steel 304
Sold separately: M12 Connector, operation key
Weight: Approx. 130g(approx. 85g)
